Peristaltic Pump Units

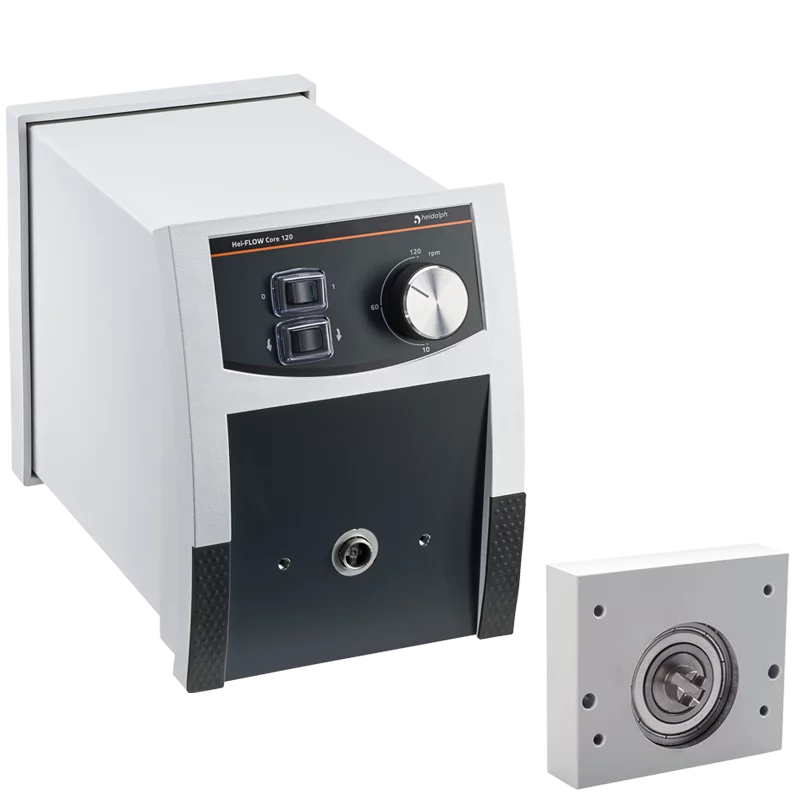

Hei-FLOW Core 120 Multi

Product Code: HEI523-50013-00

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

This peristaltic pump is ideal for the simple conveying of all media. The pump drive of this model makes it possible to switch between a single channel and multi-channel pump head. By simply flipping the switch, it can also be conveyed in an anti-clockwise direction.

Depending on the adapted pump head, a flow rate of 0.83 - 861 ml/min for the single-channel and 0.005 - 364 ml/min for the multi-channel pump head is guaranteed. The Core 120 conveys with a control accuracy of ± 5% at a speed range of 10 - 120 rpm.

Multi-Channel Operation

Increase your throughput by running up to 12 individual cassettes on one single pump drive and pump head system

Separate metering into multiple vessels with different feed rates in a single operation by using different tubing dimensions to adjust flow rate

Save time: tubing change is done in just seconds

In addition to standard pump heads which feature a 4-roller system you can choose 8-roller pump heads for low pulsation

Change your cassettes easily, even during operation – there are no restrictions

Cassette adjustments and changes are simple, just click in place

No additional purchase of a pump drive needed: upgrade your single-channel pump drive with just one adaptor for multi-channel use and pick the head/cassette configuration that matches your application needs

Technical Specifications
Supplier Heidolph
Hei-FLOW Core 120 - Technical Data

Speed range 10 - 120 rpm
Control accuracy motor ±2 %
Select direction of rotation CW / CCW
Flow rates single-channel pumps 0.83 – 861 ml/min
Flow rates multi-channel pumps 0.005 – 364 ml/min
Flow rate accuracy (water without counter pressure) ±5 %
Interval dosing -
Volume dosing -
Analog interface -
Digital Interface -
Protection class (EN 60529) IP 54
