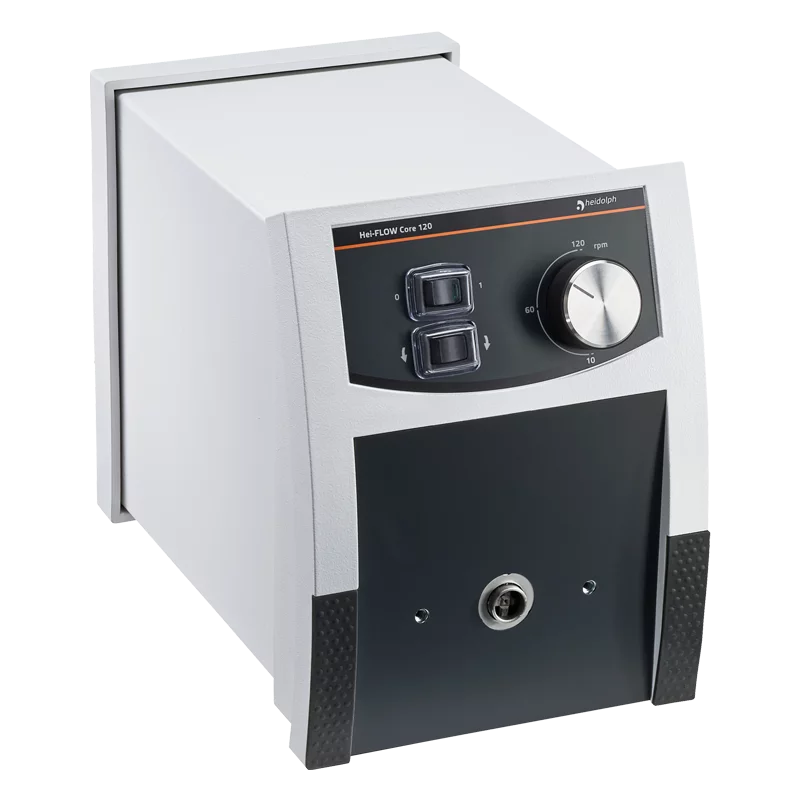

Hei-FLOW Core 120

Product Code: HEI523-50010-00

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

This peristaltic pump is ideal for the simple conveying of all media. The pump drive of this model makes it possible to switch between a single channel and multi-channel pump head. By simply flipping the switch, it can also be conveyed in an anti-clockwise direction.

Depending on the adapted pump head, a flow rate of 0.83 - 861 ml/min for the single-channel and 0.005 - 364 ml/min for the multi-channel pump head is guaranteed. The Core 120 conveys with a control accuracy of ± 2% at a speed range of 10 - 120 rpm.

Technical Specifications
Supplier Heidolph
Hei-FLOW Core 120 - Technical Data

Speed range 10 - 120 rpm
Control accuracy motor ±2 %
Select direction of rotation CW / CCW
Flow rates single-channel pumps 0.83 – 861 ml/min
Flow rates multi-channel pumps 0.005 – 364 ml/min
Flow rate accuracy (water without counter pressure) ±5 %
Interval dosing -
Volume dosing -
Analog interface -
Digital Interface -
Protection class (EN 60529) IP 54
