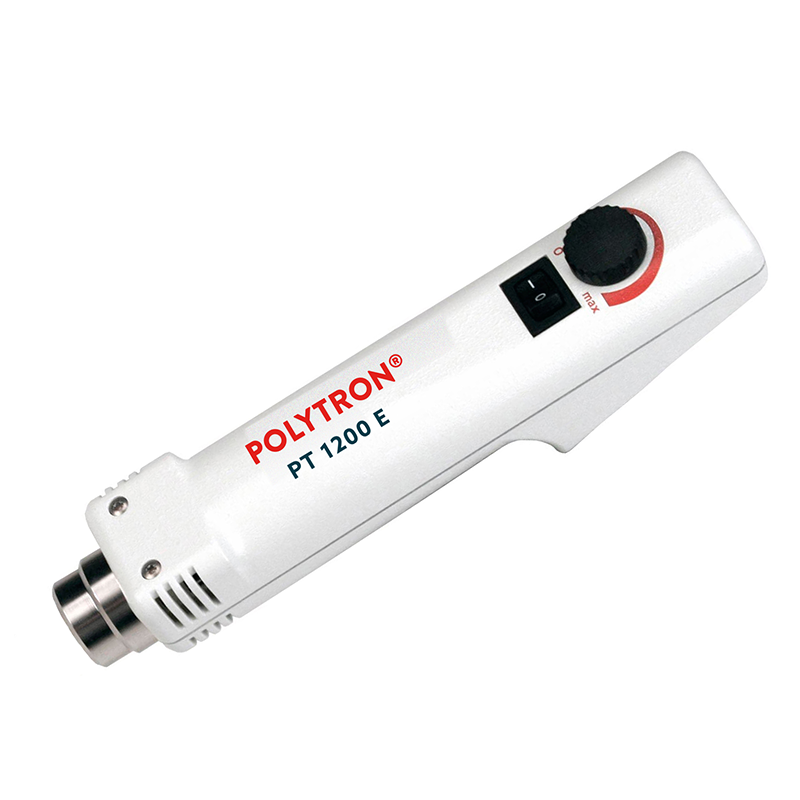

Hand Disperser (Ecoline), dispersing devices for budget-conscious labs with EU-power cable and tabletop power supply (1.8 m) (230 V)
This ergonomic hand disperser is lightweight and therefore ideal for rapid turnaround of smaller sample volumes. The extensive range of dispersing aggregates covers a wide range of sample preparation applications.

BENEFITS
Ergonomics

• Easy operation with an on-off switch and speed control
• Lightweight
• Intelligent variable speed control for long equipment life
• Low noise
• Height adjustable stand (available as an option)
• Switch aggregate quickly with Click & Go coupling
• Easy aggregate clean-up with EasyClean Design

Results are convincing

• Smallest sizes of particles / droplets: because precise analysis require homogeneous samples
• Efficient sample preparation: because fast dispersion saves time
• Standard or custom-made aggregates: perfected for and in cooperation with the users
• Cleaning and disassembly: EasyClean design makes it very simple
• Quick coupling of the aggregates: by using Cick & Go
• Best materials available: because without them, we could not call it Swiss Made
• Durability is a Swiss virtue

• Min. Volume (ml): 0.05
• Max. Volume (ml): 250
• Power (W): 100
• Tip speed: Up to max. 14 m/s / Up to max. 21 m/s (X-Aggregate)
• Applicable aggregates: ø 3, 5, 7, 12 mm / ø 20 mm X-Design
• Speed range: 0 – 25 000 rpm
• Drive coupling: Aggregates with E coupling
• Noise level (drive without aggregate): ≤ 65 dB(A) at 20 000 rpm / ≤ 76 dB(A) at 25 000 rpm
• Motor: Universal with carbon brushes
• Connection voltage: 90 – 230 V ± 10 %, 50Hz / 60Hz
• Relative humidity (max.): 80 % during storage / 80 % during operation
• Operating temperature: 0 – 40 °C
• Protection class acc. to DIN: IP 20
• Dimensions (LxWxH): Drive: 220 x 44 x 55 mm / Power supply: 132 x 58 x 30 mm
• Weight: Drive: 440 g / Power supply: 310 g
• EMC standards: IEC / EN 61000-6-2 / EN 61000-6-3
• Safety standard
