Centrifuge MF 48

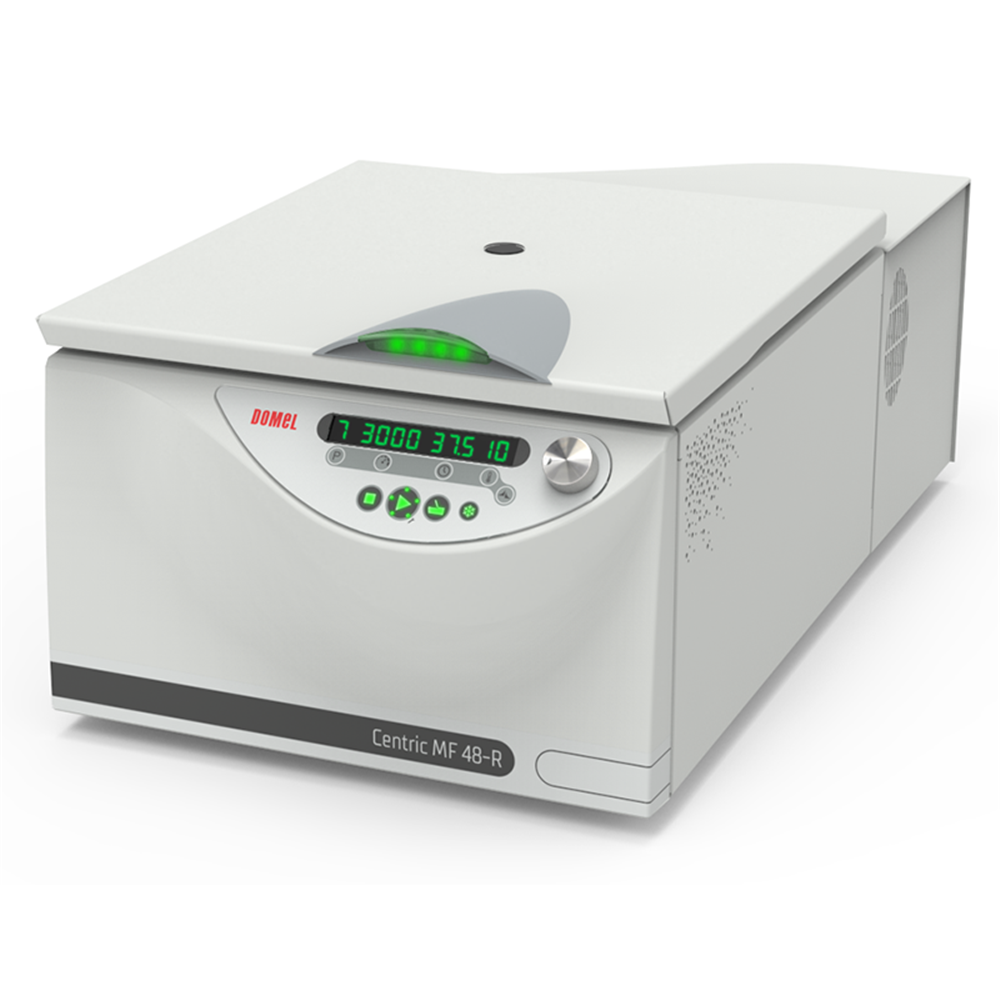

Centrifuge Centric MF 48 R, Refrigerated, 230v 50/60Hz

Product Code: DOM403190

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

True versatility multifunctional centrifuge.

This refrigerated precision instrument is crafted with refined ergonomics, offering a 4x400 ml swing-out rotor and a selection of angle rotors. Ideal for a wide range of applications, these centrifuge elevates laboratory capabilities, ensuring consistent performance even in temperature-sensitive scenarios.

The refrigerated CENTRIC MF 48 R, with a volume of 4x400 ml, offers a capacity of up to 28 x 15ml tubes or 2 Deep Well blocks in optimized dimensions. Perfect control of the centrifugation cycle: programmable acceleration and braking rates and precise control even at low speed.Refined ergonomics: convenient working height, SMART Lock rapid rotor exchange, SMART Light illuminated handle to indicate end of run, motorized lid opening.



Advantages

  • Rotor exchange without tool – SMART Lock system

  • Compact design

  • Large choice of accessories

  • Ease of use

  • End of run indication

Technical Specifications
Supplier Domel
Technical Specifications
Model Centric MF 48 R
Max. G force 21,030 rcf
Rotational Speed 500 to 14,000 rpm, step of 10 rpm
Max. capacity
Angle rotor 6 x 100 ml
Swing-out rotor 4 x 400 ml
Rotors available 8
Acceleration levels 10
Deceleration levels 10 (level 0 without braking)
Display LCD with backlight
Timer
from 0min 0s to 59min 50s in steps of 10 seconds
from 1h 00min to 99h 59min in steps of 1 minute
Fast spin with preselected speed No
Temperature set range -20°C to +40°C
Fast cooling 22°C to 4°C 15 min
Max. power consumption 1440 W
Noise level (at max. speed) < 60 dB(A)
Dimension (H x W x D) 305 x 420 x 762 mm
Crating (H x W D) 460 x 610 x 890 mm
Weight (Net/crated) 70/79 kg
Height (with open lid) 725 mm
Program settings 10 programs
Lid locking mechanism Motorised
Lid lock 2 latches
Motor type Induction brushless motor
Permitted working environment
temperature 2°C to 35°C, rh 75% non-condensing
