Tailored for medical, industrial, and scientific labs. Combining user-friendly features with a wide selection of rotors, it’s the ultimate solution for precise, temperature-sensitive applications. Elevate your lab’s performance with this advanced refrigerated centrifuge.

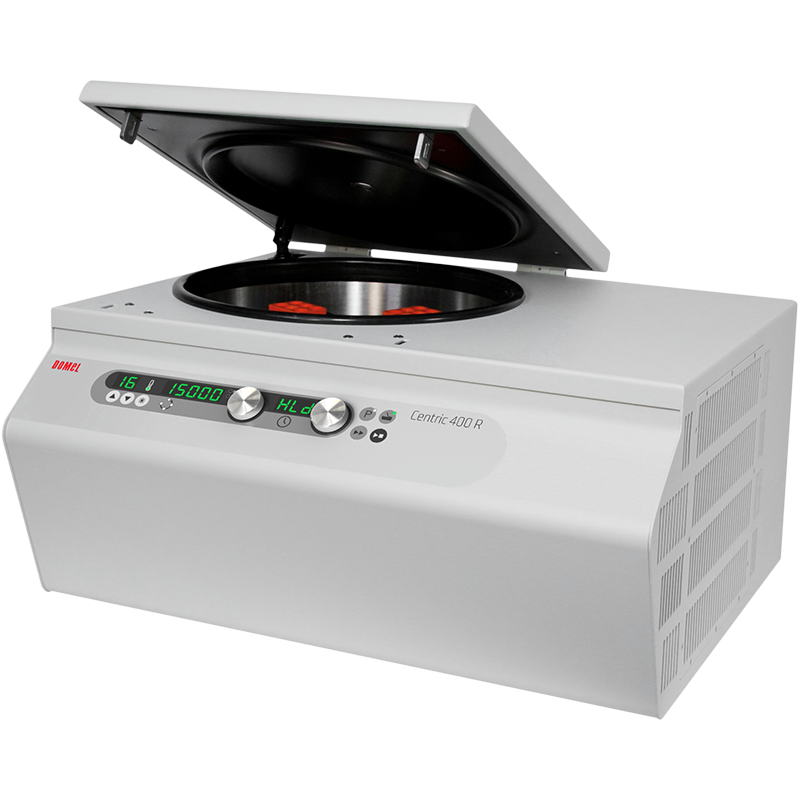

The CENTRIC 400 R is a universal laboratory centrifuge with a refrigeration system, designed for use in medical, industrial and scientific laboratories for separating substances with different relative densities by centrifugal force. The maximum rotational speed of 18,000 RPM gives the centrifugal force of 31,150 x g.

A wide usage of programming options and electronic operation control allow for trouble-free use. With a special drive, quiet, maintenance-free operation with no carbon dust pollution is guaranteed.

The centrifuge is equipped with user-friendly options that make operation and standard settings easier. Built-in error-detecting functions keep the user from entering incorrect values and monitor the whole operation.

The centrifuge has the possibility to save programs. Memory storage allows storage of up to 10 different data setups. The centrifuge always keeps the last ran program in its memory for an unlimited amount of time, allowing the program to be restarted at any time, even if the centrifuge was turned off during operation. All important operation parameters can be seen at a glance.

The parameters are entered with knobs and keys on the control panel. The centrifuge’s interior is also easy to clean. We can offer you a device that combines functional variety with practical applications.

Advantages:

Robust Design, QUIET RUNNING
Brushless Drive System, MAINTENANCE FREE
Safety features: Automatic Rotor Recognition System, Automatic Speed Limitation System, Imbalance, 2 point lid lock, Errors displayed with sound alarms
Microprocessor Controlled Functions of Cover, Time, Speed and Temperature
Adjustable Acceleration and Braking System
Special START – STOP Features
Fast Spin & Quick-COOLING® Features
Constant Temperature Fan System
Up to 10 Programs

Technical Specifications
Model	Centric 400 R
Max. G Force	31,151 rcf
Rotational Speed	500 to 18,000 rpm, step of 10 rpm
Max. capacity
Angle rotor	6 x 50 ml
Swing-out rotor	4 x 200 ml
Rotors Available	11
Acceleration Levels	10
Deceleration Levels	10 (level 0 without braking)
Display	LED
Timer	1 s to 99 min 50 sec and continuous, step 10 s
Fast spin with preselected speed	Yes
Temperature set range	-9°C to +40°C
Fast cooling 20°C to 4°C	in approximately 15 min
Max. power consumptions	930 W
Noise level (at max. speed)	< 58 dB(A)
Dimension (H x W x D)	350 x 650 x 545 mm
Crafting (H x W x D)	420 x 750 x 650 mm
Weight (Net/Crated)	79 / 101 kg
Height (with open lid)	709 mm
Program settings	10 programs
Lid locking mechanism	Motorised
Lid lock	2 latches
Motor Type	Induction brushless motor
Permitted working ambient	Temperature 2°C to 35°C, rh 75% non-condensing
