MultiVac610-MS-T, Vacuum Filtration System, AC220V, 50Hz

Product Code: ROC180611-22-T

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

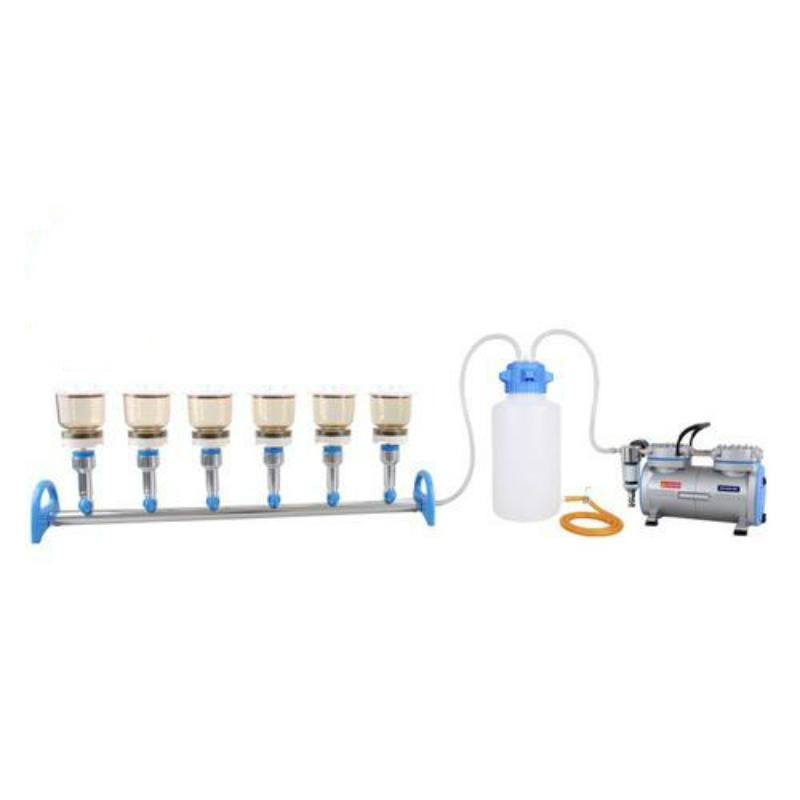

MultiVac 610-MS-T Vacuum Filtration System

Catalogue: 180611-22-T

Complete set includes:
* MultiVac610-MS-T, Vacuum Filtration System, AC220V, 50Hz
* Vacuum Pump Rocker 400, AC220V,50HZ - Click here to view this product
* Filter Holder Magnetic MF3, 300ml with lid kit - Click here to view this product
* Rocker Waste bottle for Vacuum Filtration - 4000ml - Click here to view this product
* Silicone Tube (2m)



Features :
Special design for large number samples
MultiVac 610-MS-T is an economical model for large sample filtration. This system includes vacuum pump, manifold, waste bottle and magnetic filter holders.

Light and handy aluminum design
The manifold is made of anodized aluminum which is autoclavable, light and cost-effective.

Magnetic filter holder is included
Magnetic filter holder allows one-handed operation, prevents possible twisting and tearing of the membrane.

4 liter PP waste bottle with drain
The large capacity of 4000ml waste bottle with drain offers convenience of collecting and draining waste solution.

Applications :
- Filtration for suspended solid test
- Filtration for microbiology test
- General laboratory filtration



Technical Specifications
Supplier Rocker Scientific

Rocker 400 Specification (220V, 50Hz)

Max. power: 80W

Max. current: 0.4A

Max. vacuum: 105 mbar abs.

Max. flow rate: 34 L/min

Vacuum regulator: Yes

Overflow protection: Yes

Filter cartridge: Yes

Thermal protection: Yes

Motor rotation speed: 1450 RPM

Horse power: 1/6 HP

Noise level: 52 dB

Hose barb: ID8

MultiVac 610-MS Specification

Number of branch: 6

Filter diameter: 47 mm

Material contact with filtrate: Aluminum
