Single spindle, T-SP-1

Product Code: IKA0025008238

  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

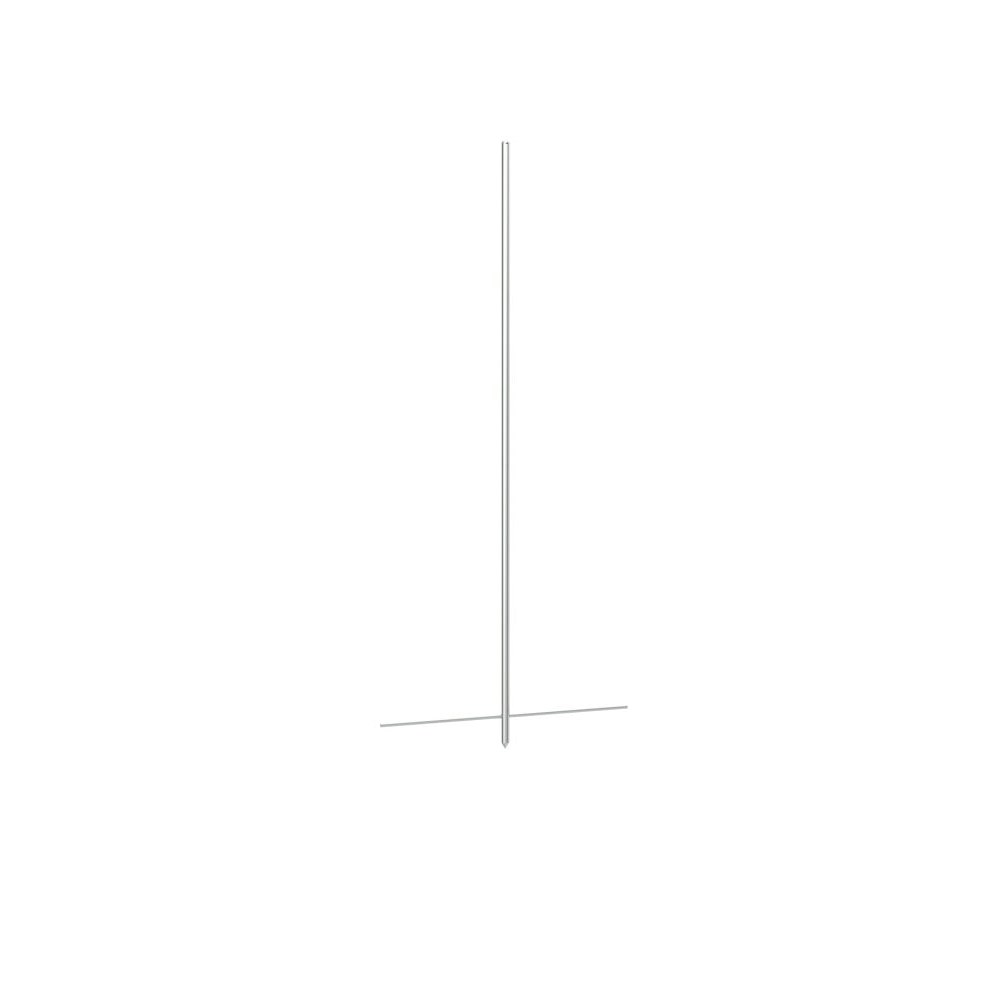

Single spindle, T-SP-1

Single T-SP-1 spindle.

The spindle can only be used in combination with the motorized stand HELISTAND as well as the respective nut and coupling.
The complete T-SP-SET with nut and coupling is included with the HELISTAND Set and all ROTAVISC HELI Packages.
T-spindles used in combination with the motorized stand HELISTAND are particularly suitable for the measurement of non-flowing samples, such as creams, pastes or gelatin.
Technical Specifications
Supplier IKA
Spindle geometry T-bar
Connection Thread M2.5 LH
Diameter 48.1 mm
Spindle length 114.3 mm
Mounting Bracket yes
Sample container: 600mL beaker low
Viscosity Accuracy (FSR) 1 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 93.73 mPa.s
Max. FSR match ROTAVISC lo-vi 18746 mPa.s
Min. FSR match ROTAVISC me-vi 1000 mPa.s
Max. FSR match ROTAVISC me-vi 200000 mPa.s
Min. FSR match ROTAVISC hi-vi I 2000 mPa.s
Max. FSR match ROTAVISC hi-vi I 400000 mPa.s
Min. FSR match ROTAVISC hi-vi II 8000 mPa.s
Max. FSR match ROTAVISC hi-vi II 1600000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 50 x 116 x 50 mm
Weight 0.002 kg
