Extended viscocity range spindle, VOL-SP-4.2

Product Code: IKA0025007063

  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

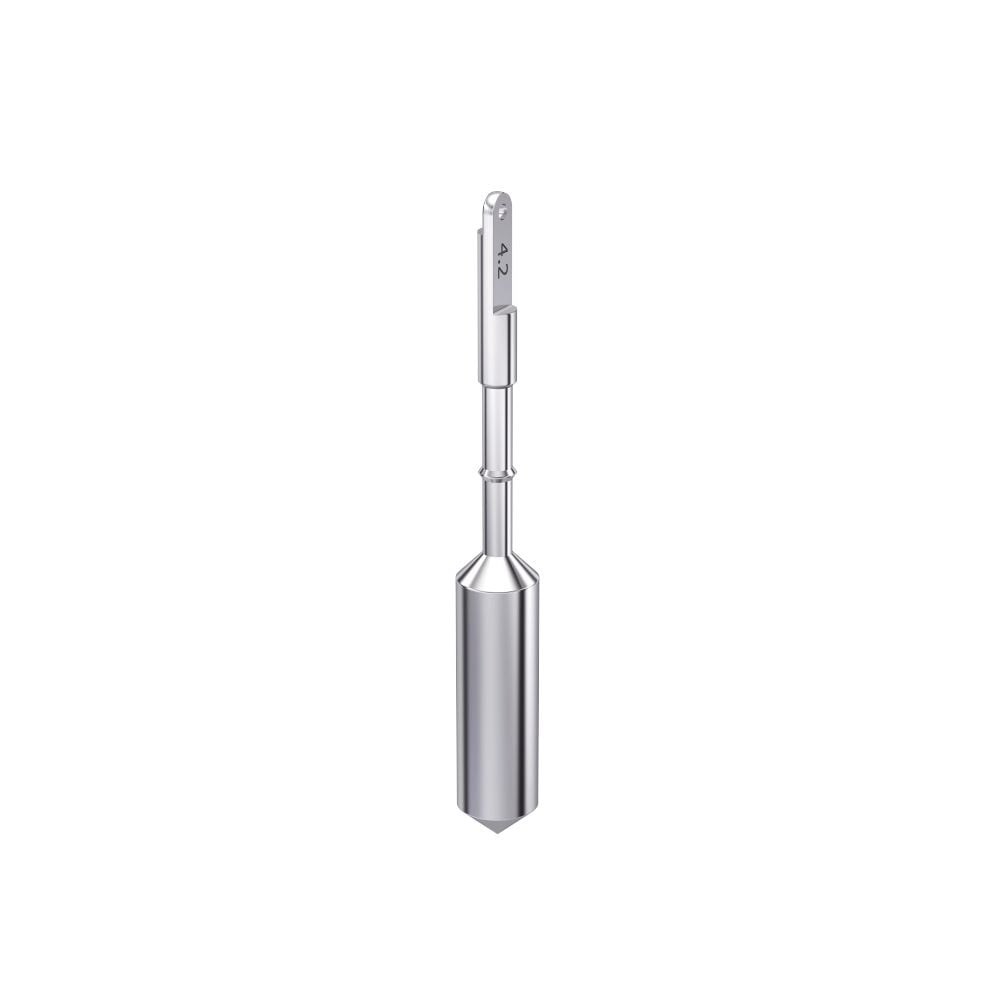

Extended viscocity range spindle, VOL-SP-4.2

VOL-SP-4.2 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 3.8 ml.

It is required to use the 4.2 ml chamber VOL-C-RTD-3.8 in combination with the VOL-SP-4.2 spindle. The chamber is available as accessory.

Technical Specifications
Supplier IKA
Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 7 mm
Immersion depth 33 mm
Spindle length 56.5 mm
Sample volume 4.2 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 599.9 mPa.s
Max. FSR match ROTAVISC lo-vi 119974 mPa.s
Min. FSR match ROTAVISC me-vi 6400 mPa.s
Max. FSR match ROTAVISC me-vi 1280000 mPa.s
Min. FSR match ROTAVISC hi-vi I 12800 mPa.s
Max. FSR match ROTAVISC hi-vi I 2560000 mPa.s
Min. FSR match ROTAVISC hi-vi II 51200 mPa.s
Max. FSR match ROTAVISC hi-vi II 10240000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 9 x 59 x 9 mm
Weight 0.008 kg
