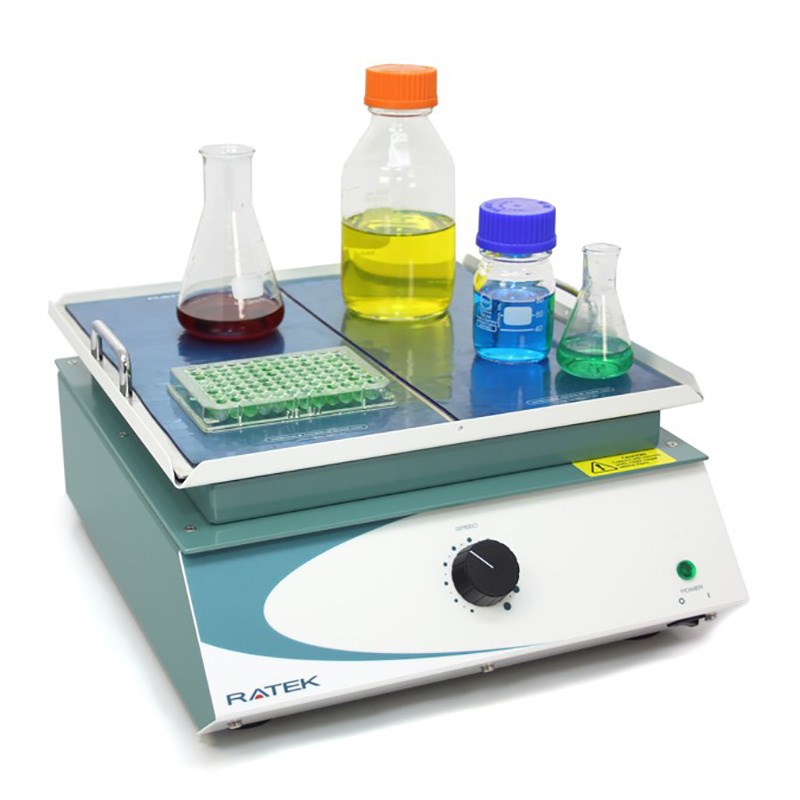

The EOM5 is the perfect everyday orbital shaker suitable for a wide range of mixing applications. The solid state speed control has a speed range of 20 - 200 RPM and is controlled from a simple to operate turn dial on the front of the shaker, whilst the Ratek silent belt drive system will deliver years of quiet reliable operation without service.
Slow acceleration is incorporated into the drive system to reduce the risk of spillage, as well as a motion interrupt safety cut-out. The supplied non slip mat is ideal for shaking speeds up to 100RPM, and a wide range of accessories is available for higher speed shaking or to retain more specialised containers. These include Ratek's amazing AT5 adhesive mat tray, TCT5 tulip clip tray and the RR5 universal rack. (Contact us for more info on options)
The EOM5 is a simple to operate yet offers precise repeatable speed control in a package that is built to last.
Applications
Applications include general mixing, cell culturing, solubility studies, diagnostic testing, bacterial suspensions, extraction procedures, staining/destaining, washing procedures as well as many other biological and chemical tasks.
Specifications
| Power requirements |
240 VAC/40 watts |
| Capacity |
350 x 350mm platform maximum capacity 8kg's |
| Mixer control |
Solid state with optical feedback |
| Motor |
Brushless ac |
| Speed range |
20-200 rpm through an orbit diameter of 32mm |
| Overall dimensions |
W370 x D400 x H175 mm |
| Weight |
10.2kg |
