Rotary Tube Mixer with Disc

Variable speed range to 50 RPM Adjustable disc angle from horizontal to vertical Quiet operation Can accommodate small-medium tubes and bottles Customised discs available

Product Overview

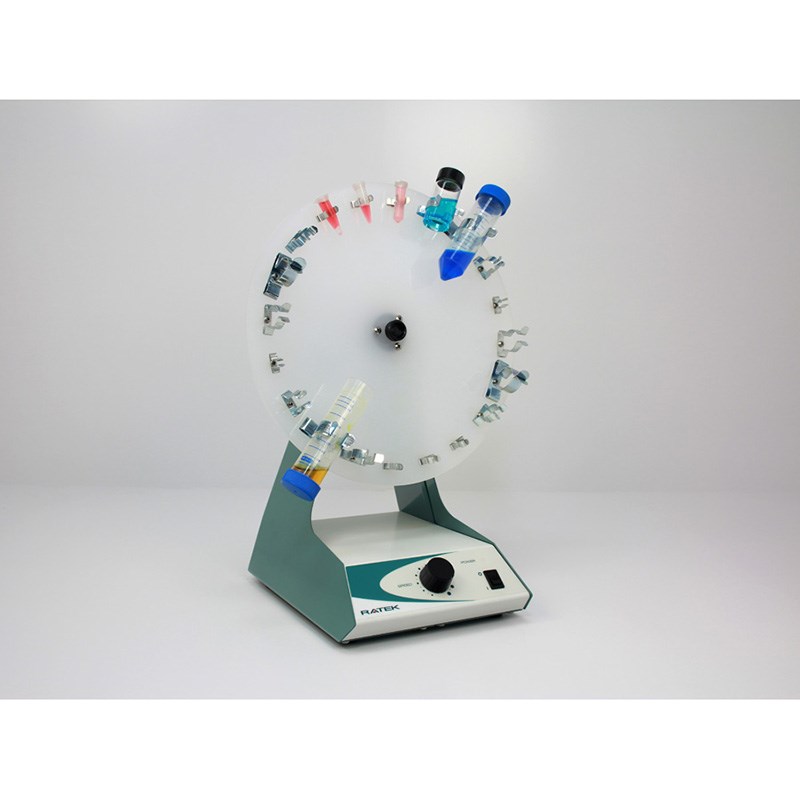

The RSM7DC Rotary mixer is suitable for many applications where an end over end action is required, including blood and sample mixing. The tilting head allows for the disc to be held at any angle from horizontal to vertical enabling a wide range of different mixing actions. Loaded evenly with the locking screw removed the disc can rotate and be stopped by hand without switching off the drive, making tube placement and removal a simple operation. A centre locking screw is provided for heavier and unbalanced loads. The RSM7DC is supplied with a disc that has 20 threaded inserts and clips for tube diameters to suit customer specifications. Individual clips can be removed and replaced if required.

Applications

Applications include aerating cultures, biological sample suspension, blood sample suspension, and general mixing applications.

Specifications

Power requirements 12VDC Motor DC geared Speed control 0 - 60 rpm Overall dimensions: H415 x D255 x W300 including disc Weight: 5 kg including disc

Also Known As

Tube Rotator, Tube Mixer, Variable Angle Mixer, Rotary Disc Suspension Mixer, Rotary Blood Tube Mixer
