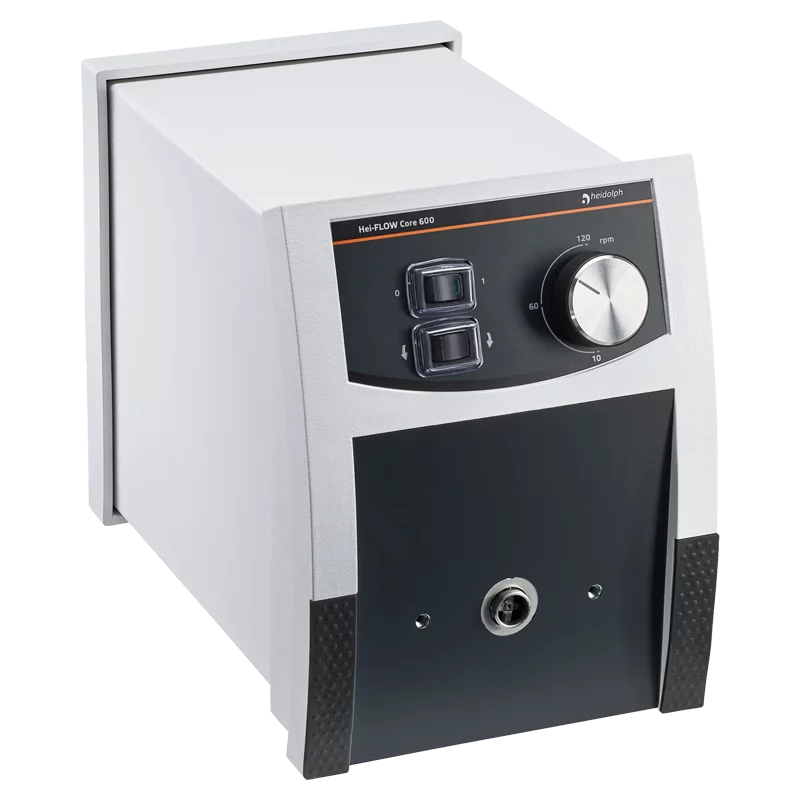

Hei-FLOW Core 600

Product Code: HEI523-50060-00

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

This pump of the Hei-Flow Core series is particularly suitable when high volumes need to be transported easily. A flow rate of 4.0 - 4,151 ml / min can be set for this purpose. This model is designed for the use of single-channel pump heads.

Even with a load change, the speed of 50 — 600 rpm is kept constant at a control accuracy of ±2%. It is easy to switch to the reverse direction of rotation.

Technical Specifications
Supplier Heidolph
Hei-FLOW Core 600 - Technical Data

Speed range 50 - 600 rpm
Control accuracy motor ±2 %
Select direction of rotation CW / CCW
Flow rates single-channel pumps 4.0 – 4,151 ml/min
Flow rates multi-channel pumps -
Flow rate accuracy (water without counter pressure) ±5 %
Interval dosing -
Volume dosing -
Analog interface -
Digital Interface -
Protection class (EN 60529) IP 54
