Product Overview

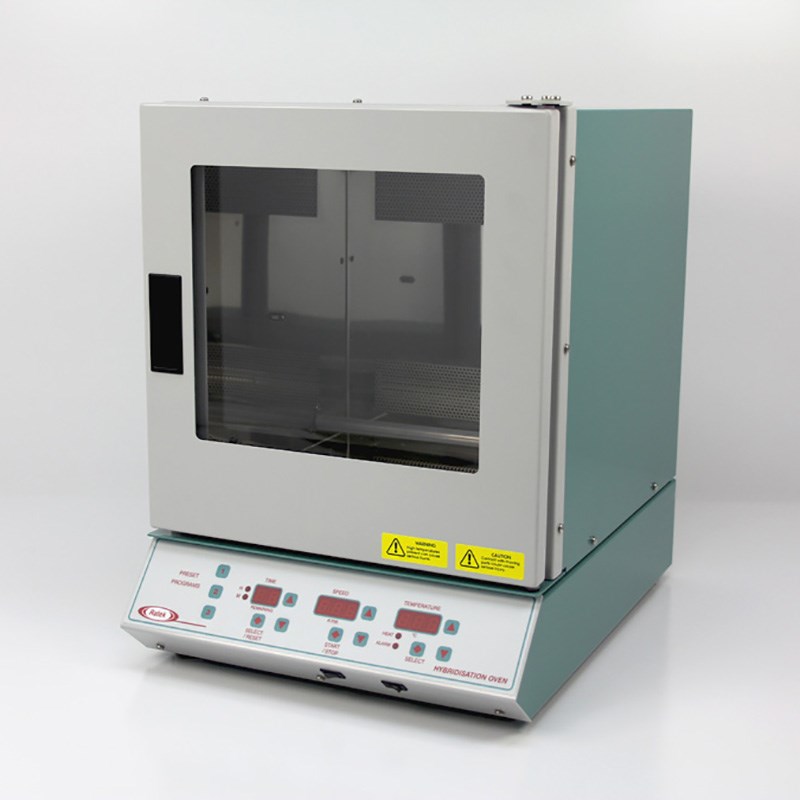

This compact oven can hold up to 18 hybridisation bottles 50mm diameter x 300mm long. Carousels can be supplied for most sizes of bottles tubes and containers, and can be easily removed from the oven complete for loading and unloading. The carousel is driven by 2 rollers and requires no mechanical coupling. An optional rocking platform attachment is available that fits the same way.
Applications
Applications include nucleic acid hybridisations such as Northern (RNA) blots/hybridizations, Southern (DNA) blots/hybridizations, Western (Protein) blots, and molecular biology assays, where sterile conditions are required and where the integrity of the sample must be preserved while heating it to the exact temperature for the right period of time.
Specifications
| Power requirements |
240vac/50hz/500 watts |
|
| Capacity |
Up to 18 bottles 50mm diameter x 300mm
(Optional) Up to 40 x centrifuge tubes or small bottles (end over end mixing) |
|
| Chamber Dimensions |
W330 x H350 x D320mm |
|
| Mixer control |
Microprocessor control with tachometer |
|
| Motor |
Brushless AC |
|
| Speed range |
2-20 rpm |
|
| Heater |
Fan assisted blower and spiral wound element |
|
| Control range |
28°C to 99.9°C. (min 6°C above ambient) |
|
| Control stability |
± 0.2ºC |
|
| Timer |
0-99 minutes or 0-99 hours with 3 presets |
|
| Safety features |
Motion interrupt cut out. Over temperature cut out |
|
| Overall dimensions |
W400 x D520 x H540 mm |
|
| Weight |
34 kg |
|
Also Known As:
Hybridisation Incubator, Hybridization Oven, Hybridization Incubator
