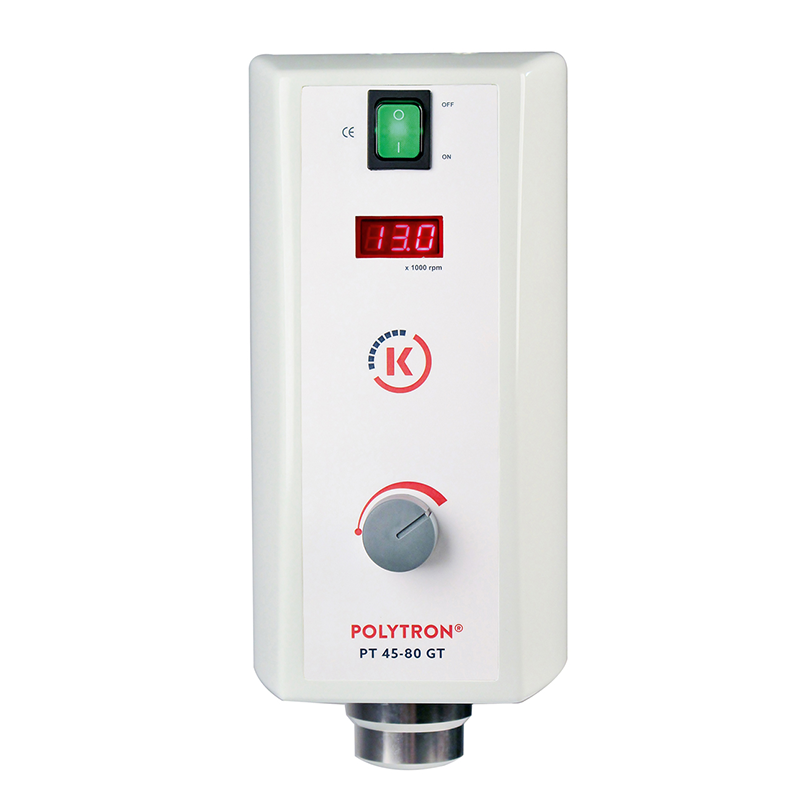

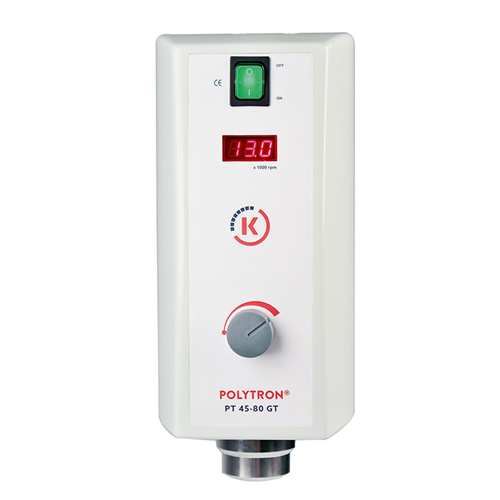

Powerful stand-disperser (Ecoline), flexible-use disperser with EU-power cable (230 V)
With this powerful drive unit, with continuous speed control, high tip speeds and a lot of different and exchangeable POLYTRON® dispersing aggregates, the low-cost system PT 45-80 GT offer you a solution for a wide range of dispersing and mixing applications.
BENEFITS
Ergonomics
- Easy operation with an on-off switch and speed control
- Intelligent variable speed control for long equipment life
- Speed stability even with changes in viscosity
- Protection against overheating, overload and blocking
- Easy to adjust motor height (depending on the stand)
- Switch aggregate quickly with Click & Go coupling
- Easy aggregate clean-up with EasyClean Design
Results are convincing
- Smallest sizes of particles / droplets: because precise analysis require homogeneous samples
- Efficient sample preparation: because fast dispersion saves time
- Standard or custom-made aggregates: perfected for and in cooperation with the users
- Cleaning and disassembly: EasyClean Design makes it very simple
- Quick coupling of the aggregates: by using Click & Go
- Best materials available: because without them, we could not call it Swiss Made
- Durability is a Swiss virtue
TECHNICAL INFORMATION
- Min. Volume (ml): 0.1
- Max. Volume (ml): 30000
- Power (W): 1700
- Tip speed: Up to max. 32 m/s
- Applicable aggregates: ø 5 mm to ø 65 mm
- Speed range: 500 – 21 000 rpm
- Drive coupling: Aggregates with F coupling
- Noise level (drive without aggregate): 85 dB(A) at 21 000 rpm
- Motor: Universal with carbon brushes
- Connection voltage: 110 – 230 V ± 10 %, 50Hz / 60Hz
- Relative humidity (max.): 80 % during storage / 80 % during operation
- Operating temperature: 0 – 40 °C
- Protection class acc. to DIN: IP 20
- Dimensions (LxWxH) Drive: 140 x 185 x 270 mm
- Weight: Drive: 7 kg
- EMC standards: IEC / EN 61000-6-2 / EN 61000-6-3
- Safety standard: IEC / EN 61010-2-51
