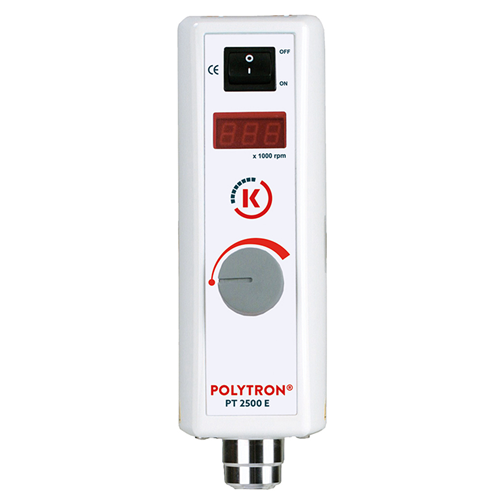

Stand Dispersing Device (Ecoline), dispersing devices for budget conscious labs with EU-power cable (230 V)
The sleek, sound-insulated casing conceals enough power to safely and quickly handle a variety of applications. Our broad range of dispersing aggregates cover the range from preparing samples to testing product formulas and recipes.
BENEFITS
Ergonomics
- Easy operation with an on-off switch and speed control
- Intelligent variable speed control for long equipment life
- Speed stability even with changes in viscosity
- Easy to adjust motor height (depending on the stand)
- Switch aggregate quickly with Click & Go coupling
- Easy aggregate clean-up with EasyClean Design
Results are convincing
- Smallest sizes of particles / droplets: because precise analysis require homogeneous samples
- Efficient sample preparation: because fast dispersion saves time
- Standard or custom-made aggregates: perfected for and in cooperation with the users
- Cleaning and disassembly: EasyClean Design makes it very simple
- Quick coupling of the aggregates: by using Click & Go
- Best materials available: because without them, we could not call it Swiss Made
- Durability is a Swiss virtue
TECHNICAL INFORMATION
- Min. Volume (ml): 0.05
- Max. Volume (ml): 2500
- Power (W): 500
- Tip speed: Up to max. 26 m/s
- Applicable aggregates: ø 3 mm to ø 25 mm
- Speed range: 500 – 30 000 rpm
- Drive coupling: Aggregates with E coupling
- Noise level (drive without aggregate): 66 dB(A) at 25 000 rpm / 72 dB(A) at 30 000 rpm
- Motor: Universal with carbon brushes
- Connection voltage: 90 – 230 V ± 10 %, 50Hz / 60Hz
- Relative humidity (max.): 80 % during storage / 80 % during operation
- Operating temperature: 0 – 40 °C
- Protection class acc. to DIN: IP 20
- Dimensions (LxWxH): Drive: 157 x 76 x 234 mm
- Weight: Drive: 1800 g
- EMC standards: IEC / EN 61000-6-2 / EN 61000-6-3
- Safety standard: IEC / EN 61010-2-51
