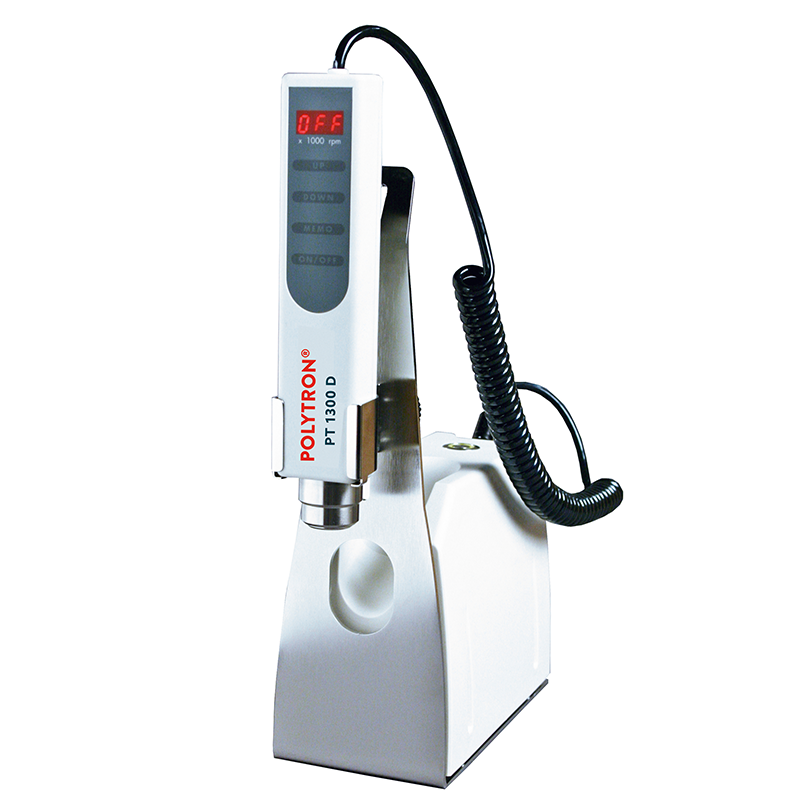

High-end handheld disperser, state-of-the-art digital technology with PC software, USB connection cable and aggregate bracket with EU-power cable (230 V)

Research, development or quality control, all work towards a common goal: Sample analysis. The basic requirements for an impending sample preparation is the efficient disruption of systems, reproducibility of the results, and simple procedures.

BENEFITS
Ergonomics

• ON & OFF and speed control by simply pressing a button
• The drive rests comfortably in the palm of your hand
• The membrane keyboard is easy to operate and to clean
• Changing the aggregate is easy with the Click & Go quick release
• The EasyClean Design makes cleaning the aggregates simple
• Low noise level

Intelligent Control System

• Intelligent speed controls ensure a long service life
• Stable motor speeds even during changes of viscosity
• Using the MEMO button lets you save engine speeds and provides you with the option to recall and reproduce the setting later in order to process larger numbers of samples.
• The supplied PC software offers a remote control option or the recording of specific application parameters.

Results are convincing

• Smallest sizes of particles / droplets because precise ­analysis require homogeneous samples
• Efficient sample preparation because fast dispersion saves time
• Standard or custom-made aggregates perfected for and in cooperation with the users
• Cleaning and disassembly EasyClean Design makes it very simple
• Quick coupling of the aggregates by using Click & Go
• Best materials available because without them, we could not call it Swiss Made
• Durability is a Swiss virtue

• Min. Volume (ml): 0.05
• Max. Volume (ml): 250
• Power (W): 100
• Tip speed: Up to max. 14 m/s / Up to max. 21 m/s (X-Aggregate)
• Applicable aggregates: ø 3, 5, 7, 12 mm / ø 20 mm X-Design
• Speed range: 2000 – 30 000 rpm
• Drive coupling: Aggregates with E coupling
• Noise level (drive without aggregate): 65 dB(A) at 30 000 rpm
• Motor: Brushless, maintenance-free
• Connection voltage: 90 – 230 V ± 10 %, 50Hz / 60Hz
• Relative humidity (max.): 80 % during storage / 80 % during operation
• Operating temperature: 0 – 40 °C
• PC Interfaces: RS-232 (D SUB 9) / USB socket B
• Protection class acc. to DIN: IP 20
• Dimensions (LxWxH): Drive: 210 x 40 x 45 mm / Control module: 230 x 205 x 95 mm
• Weight: Drive: 620 g / Control module: 1040 g
• EMC standards: IEC / EN 61000-6-2 / EN 61000-6-3
