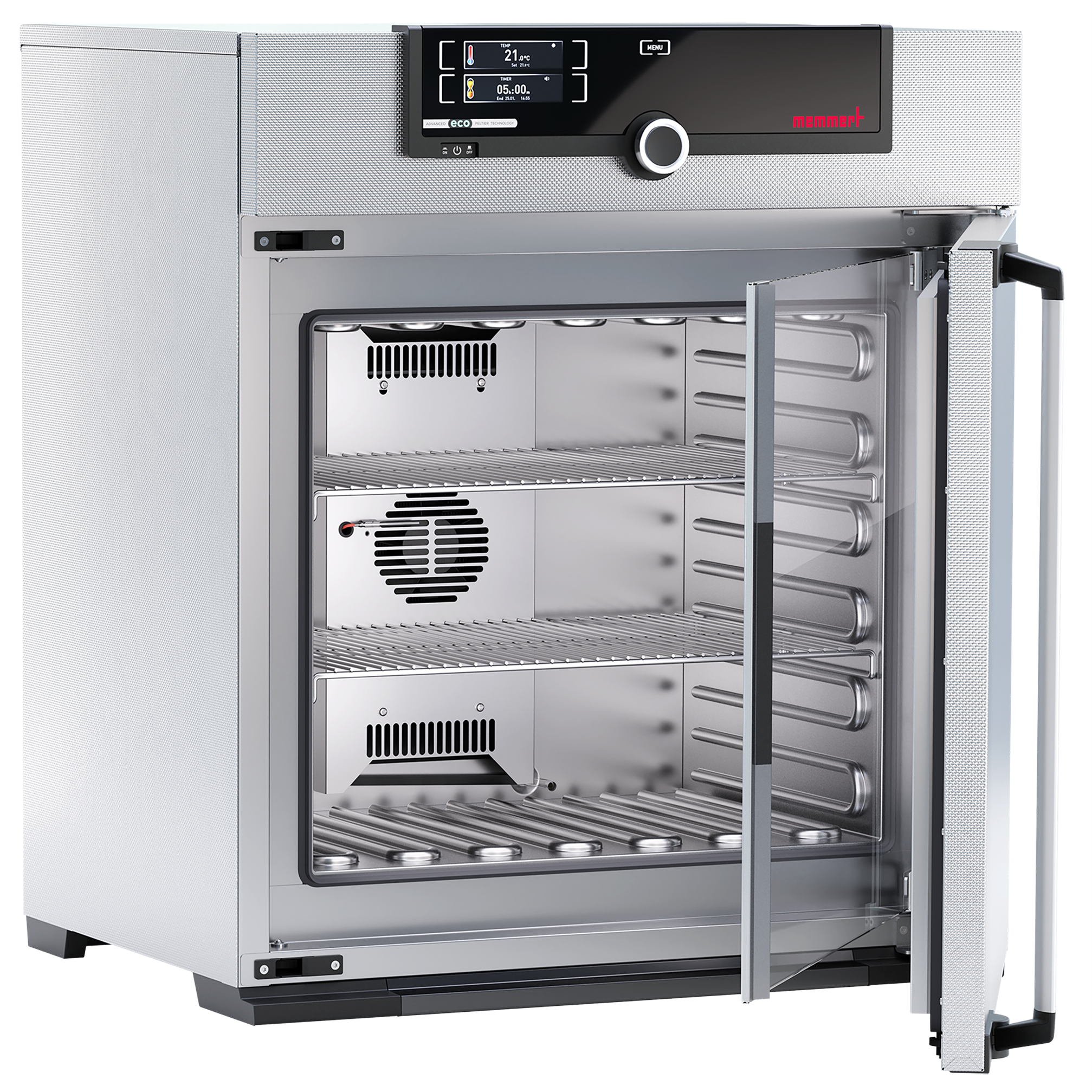

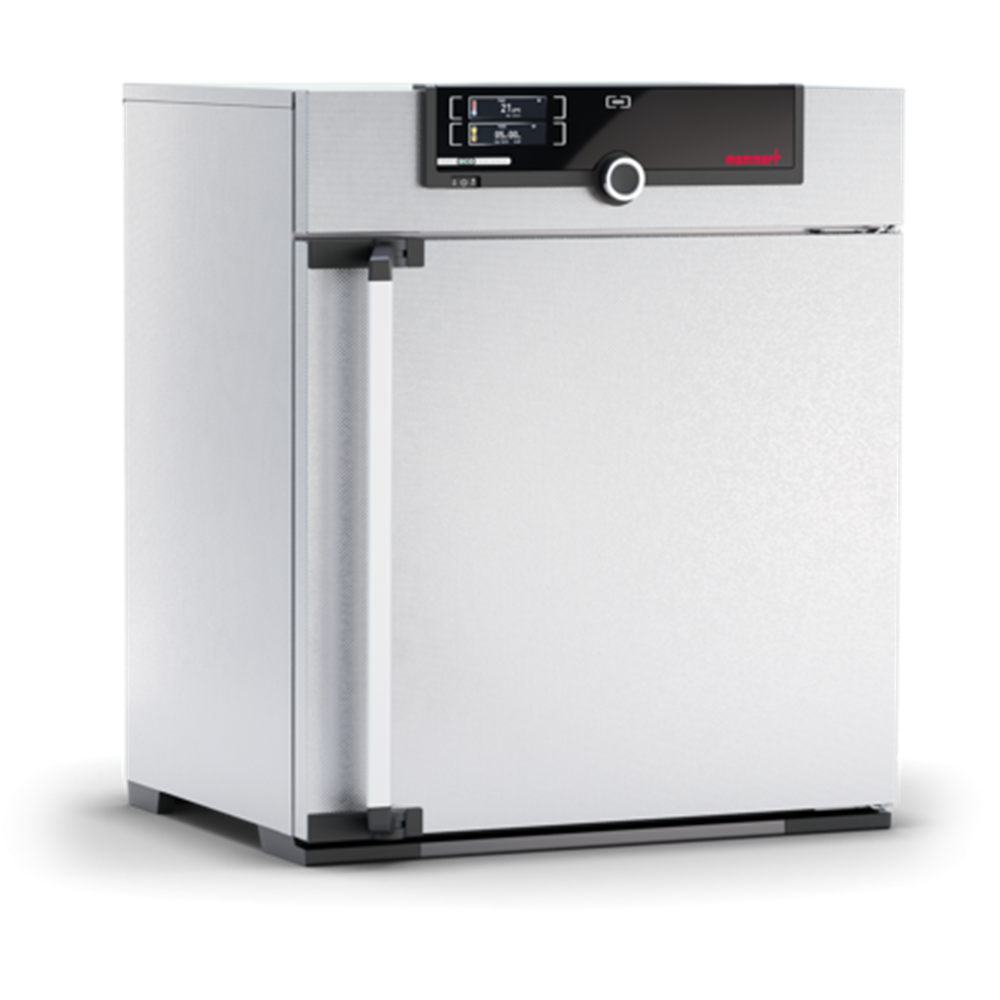

Incubator IPP110eco Peltier Cooled 108L (at least 20C below ambient ) to +70C

Product Code: MMTIPP110ECO

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

Powered by the sophisticated Advanced Peltier Technology from Memmert, the IPPeco is the most energy-efficient and, simultaneously, the most powerful cooled incubator of its kind. Compared to similar appliances, its heat-up, cool down and recovery times are much shorter. The Peltier-cooled incubator from Memmert saves on operating costs, ensures sample quality, and makes work in a microbiological laboratory significantly more efficient. Common applications are microbiological analyses, bacterial count determination, cultivation above & below room temperature, beer stability accelerated aging test, or shelf-life tests of dairy products.

  • Temperature range 0°C up to +70 °C

  • Nine model sizes (32 to 2140 litres volume)

  • SingleDISPLAY variant

  • Double doors as standard with fully insulated stainless steel. Inside glass: prevention of contamination and drops or rises in temperature. Furthermore, an optimal view of the sensitive load through wide-area Interior glass doors (size 1400/2200 stainless steel doors with glass sector; sizes 750, 1060 and 1400 two leaves, size 2200 three leaves) are possible.

  • Fans integrated in the Peltier elements ensure rapid energy transfer and optimum temperature distribution.

Unique temperature homogeneity
The Advanced Peltier Technology of the cooled incubator IPP eco ensures an extremely sensitive temperature control with the smallest control fluctuations to guarantee unique temperature homogeneity. The interior is completely closed off from the surroundings. The advantages for you: minimum risk of the sample drying out and condensation forming during the cooling process occurs outside of the working chamber on the Peltier element. Since the cooling incubator IPPeco does not require a compressor, it saves valuable space in the laboratory and works with unmatched quiet and low vibrations.


A Memmert cooled incubator IPPeco offers unique advantages

  • Intuitive and easy-to-use operating menu
  • Almost exclusive use of high-quality, corrosion-resistant and easily cleanable stainless steel for the working chamber and housing
  • heating concept specifically adapted for a precise and homogenous temperature control
  • A wide range of options for programming and documentation using interfaces, integrated data logger and Software AtmoCONTROL
  • Three years guarantee worldwide
Technical Specifications
Supplier Memmert

IPP110eco

Standard delivery Peltier-cooled incubator

With the help of our model selection, dimensional model sketches and extensive technical data for download, you will find your perfect Peltier-cooled incubator. Flexibility and technical features of our appliances meet all possible needs. Put us to the test!

Sketch Peltier-cooled incubator IPP110eco

Temperature

Setting temperature range 0 to +70 °C
Working temperature range with light: +10 to +40 °C
Working temperature range without light: from 0 (at least 20 below ambient temperature) to +70°C
Setting accuracy temperature 0.1 °C
Temperature sensor 1 Pt100 sensor DIN class A in 4-wire-circuit

Control technology

Language setting German, English, Spanish, French, Polish, Czech, Hungarian
ControlCOCKPIT SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
Timer Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function SetpointWAIT the process time does not start until the set temperature is reached
Calibration three freely selectable temperature values
adjustable parameters temperature (Celsius or Fahrenheit), programme time, time zones, summertime/wintertime

Ventilation

Convection forced ventilation by Peltier fan

Communication

Documentation programme stored in case of power failure
Programming AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).

Safety

Temperature control adjustable electronic overtemperature monitor and mechanical temperature limiter
Autodiagnostic system for fault analysis

Heating concept

Peltier energy-saving Peltier heating-/cooling system integrated in the rear (heat pump principle)

Standard equipment

Works calibration certificate for +10 °C, +25 °C and +40 °C
Door fully insulated stainless steel door with 2-point locking (compression door lock)
Door inner glass door
Internals 2 stainless steel grid(s), electropolished

Stainless steel interior

Dimensions w(A) x h(B) x d(C): 560 x 480 x 400 mm (d less 32 mm for fan - Peltier)
Volume 108 l
Max. number of internals 5
Max. loading of chamber 150 kg
Max. loading per internal 20 kg

Textured stainless steel casing

Dimensions w(D) x h(E) x d(F): 745 x 864 x 555 mm (d +56mm door handle & +111mm Peltier element)
Housing rear zinc-plated steel

Electrical data

Voltage Electrical load 230 V, 50/60 Hz
approx. 320 W
Voltage Electrical load 115 V, 50/60 Hz
approx. 320 W

Ambient conditions

Set Up The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.
Ambient temperature 16 ºC to 40 ºC
Humidity rh max. 70 %, non-condensing
Altitude of installation max. 2,000 m above sea level
Overvoltage category II
Pollution degree 2

Packing/shipping data

Transport information The appliances must be transported upright
Customs tariff number 8419 8998
Country of origin Federal Republic of Germany
WEEE-Reg.-No. DE 66812464
Dimensions approx incl. carton w x h x d: 830 x 1050 x 800 mm
Net weight approx. 63 kg
Gross weight carton approx. 86 kg
