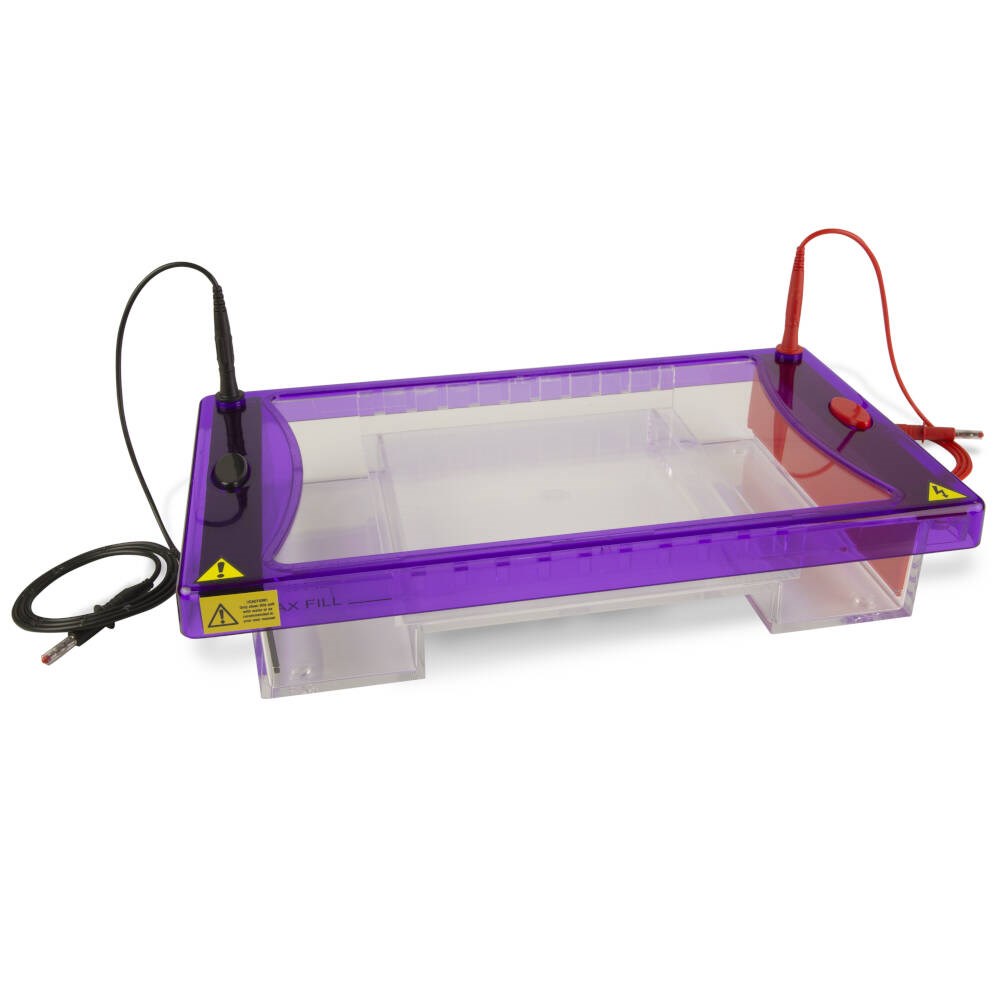

Multi Sub Maxi, 20 x 20cm UV Tray, 2 x 20 sample, 1mm thick combs, casting dams, loading guides

Overview:

The MultiSUB Maxi is primarily designed for resolution of high numbers of samples, such as from Cloning or PCR. The MultiSUB Maxi allows ultra high-resolution separations over extended runs. Tray sizes correspond to standard blotter sizes. It also allows easy sample transfer onto a membrane for further analysis.

Four gel tray sizes are available; 20 x 10cm, 20 x 15cm, 20 x 20cm and 20 x 25cm. Multichannel pipette compatible combs of up to 40 samples facilitate speed loading of up to 440 samples per gel. 50 sample combs allow maximum sample capacity of 550 samples per gel. Casting dams allow gels to be rapidly cast externally while the MultiSUB Maxi unit is in use for gel running

Product Includes: 1 x multiSUB Maxi Comb, 20 sample MC, 1mm thick (MS20-20MC-1-U), 1 x multiSUB Maxi Gel tray Dams (MS20-UVDAM), 1 x multiSUB Maxi tank, no electrodes (MS20TMOULDING), 1 x multiSUB Maxi Viewing Platform (MS20-WP), 2 x multiSUB Maxi Loading Guides (MS20-LG), 1 x Electrophoresis cable (Black & Red) (CSL-CAB), 1 x multiSUB Maxi Negative Electrode (MS20-NE), 1 x multiSUB Maxi Positive Electrode (MS20-PE), 1 x multiSUB Maxi 20 x 10cm Gel tray (MS20-UV10), 1 x multiSUB Maxi 20 x 20cm Gel tray (MS20-UV20), 1 x multiSUB Maxi Lid (MS20LID), 1 x Viewing panel for multiSUB Maxi lid (MS20-VP)

Features:

• Unit Dimensions (cm): 23 x 39.5 x 9

• Maximum Sample Capacity: 450

• Base Buffer Volume: 1200

• Typical Running Conditions: 100-150V, 60-90 minutes

• Gel Dimensions: 20 x 20
