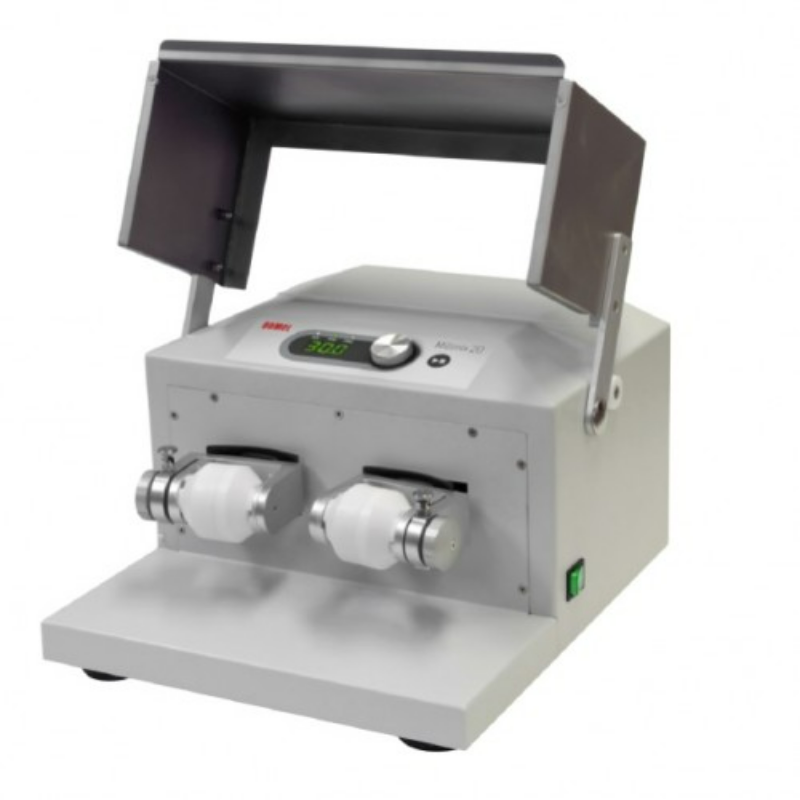

The Domel MILLMIX 20 is developed for scientists, who need efficient disruption of small amounts of sample.
Easy to use
One knob controller together with bright LED display is simple to use and gives all important information at once.
Powerful & Quick
Broad range of standard and custom designed tube holders makes MillMix 20 as a suitable tool for dedicated scientific work as well as daily routines. Efficient disintegration, homogenization and mixing in seconds.
Most Advanced Technology
Powerful DC brushless motor, which is controlled by digital processor, needs no maintenance.
Broad range of jars & tube holders
Largest Jar capacity 2 x 50 ml
Hard steel and stainless steel jars
Tungsten Carbide jar, Rounded POM Jars, Squared POM Jars
Special adapters available from Domel by customer request.
Specifications:
| Model |
MILLMIX 20 |
| Voltage |
230 V / 50-60 Hz |
| Power |
200VA |
| Time |
5s - 99 min 50 sec, up to 10min in steps of 1sec, above in steps of 10s, HOLD function |
| Vibrating frequency |
3 - 30Hz, in steps of 0,1Hz. 30Hz equals 3600 strokes/min |
| Stroke |
32mm |
| Max. Sample size |
~ 20mm |
| Max. volume |
2 x 50ml |
| Recommended load |
Up to 2 x 600g |
| Net weight |
42kg |
| Dimensions |
365 x 425 x 225mm |
Grinding Jars:
| Code |
Grinding jar (nominal vol) - set of 2 |
App. Sample amount |
App. feed size |
Balls |
| 289934 |
1.5 ml |
0.5 ml |
1 mm |
? 3 mm |
| 289945 |
1.5 ml |
0.5 ml |
1 mm |
? 5 mm |
| 289954 |
5.0 ml |
2.0 ml |
2 mm |
? 7 mm |
| 289958 |
10 ml |
4.0 ml |
4 mm |
? 10 mm |
| 289963 |
25 ml |
10.0 ml |
10 mm |
? 15 mm |
| 289969 |
50 ml |
20.0 ml |
15 mm |
? 25 mm |
Holders:
| Code |
Holder Type |
Set Size |
| 289980 |
Holder MTP - 96 well (3x standard or 1 deep well) POM |
|
| 354457 |
Holder MTP - 96 well (3x standard or 1 deep well) STAINLESS STEEL |
|
| 314116 |
Holder for 50 ml Falcon conical tubes |
set of 2 - 5 tubes in holder, Max speed 20 Hz |
| 366861 |
Holder for 50 ml Falcon conical tubes |
set of 2 - 4 tubes in holder, Max speed 30 Hz |
| 322538 |
Holder for 15ml Falcon conical tubes |
set of 2 - 5 tubes in holder, Max speed 20 Hz |
| 379173 |
Holder for 15ml Falcon conical tubes |
set of 2 - 6 tubes in holder, Max speed 30 Hz |
| 322538 |
Holder for 5ml Eppendorf tubes |
set of 2 - 10 tubes in holder, Max speed 20 Hz |
| 382297 |
Holder for 5ml Eppendorf tubes |
set of 2 - 6 tubes in holder, Max speed 30 Hz |
| 311345 |
Holder for 1,5/2,0 ml tubes with or without screw cap |
set of 2 - 24 tubes in holder |
