Overview

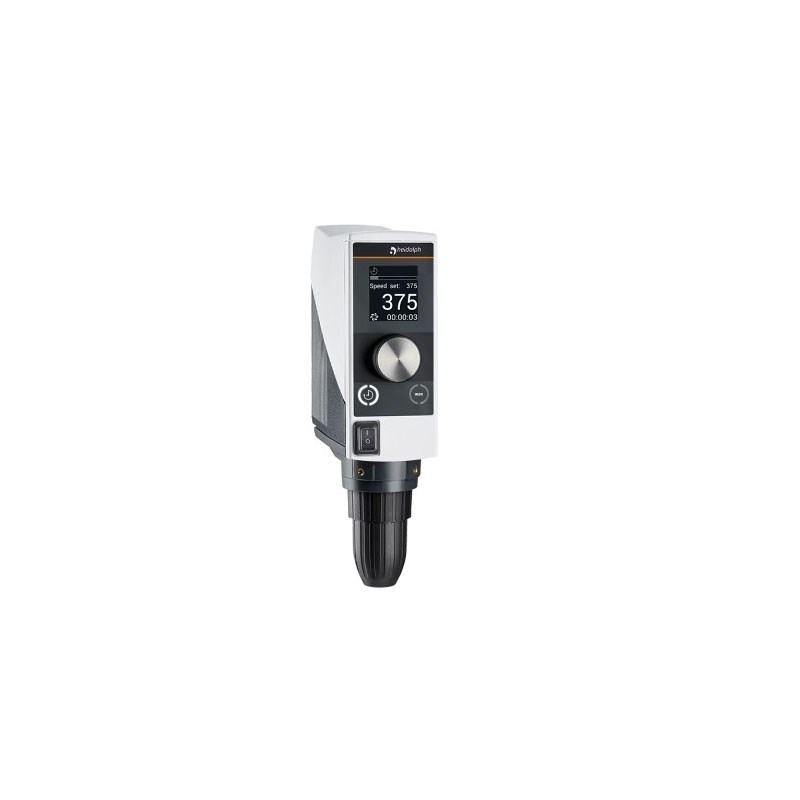

Hei-TORQUE Core

Heidolph's lightest overhead stirrer is here - with a torque of 40 Ncm!

Thanks to its weight of 2.3 kg, the Hei-TORQUE Core is easier to carry than the other models and can be mounted on a stand and/or in various closed systems. However, this does not mean that this stirrer will be less powerful.

The additional name “Core” emphasizes that it is a model of selected functions and important safety features that provide tangible help with any stirring task. Above all, the Hei-TORQUE Core scores with its simple operation: The quick-action chuck (Quick Chuck) can be opened and closed very easily without a key. The “Max” button allows you to reach the maximum speed of 2,000 rpm in no time. Thanks to the display, you can keep an overview of all application parameters.

The Hei-TORQUE Core has a quick-action chuck with a diameter of 10.5 mm and can therefore be combined with a variety of stirring tools. To achieve the best possible homogeneity, it is suitable for viscosities up to 10,000 mPas or volumes up to 25 liters (H2O).

Technical Specifications
Supplier Heidolph Instruments GmbH & Co KG

Hei-TORQUE Core - Technical Data

Number of speed gears 1
Rotation speed range 20 - 2,000 rpm
Rotation speed indicator digital
monochrom 2"
Speed control electronic
Max. torque 40 Ncm
Torque indicator symbol
Overheat protection automatic cut-out
Viscosity max. 10,000 mPa s
Stirring cap. (H2O), max. 25 l
Throught-shaft design 1
Shaft diameter, max. 10.5 mm
Counter/ Timer 1
Analog / digital interface -
Power rating motor input 105 W
Protection class (EN 60529) IP 42
