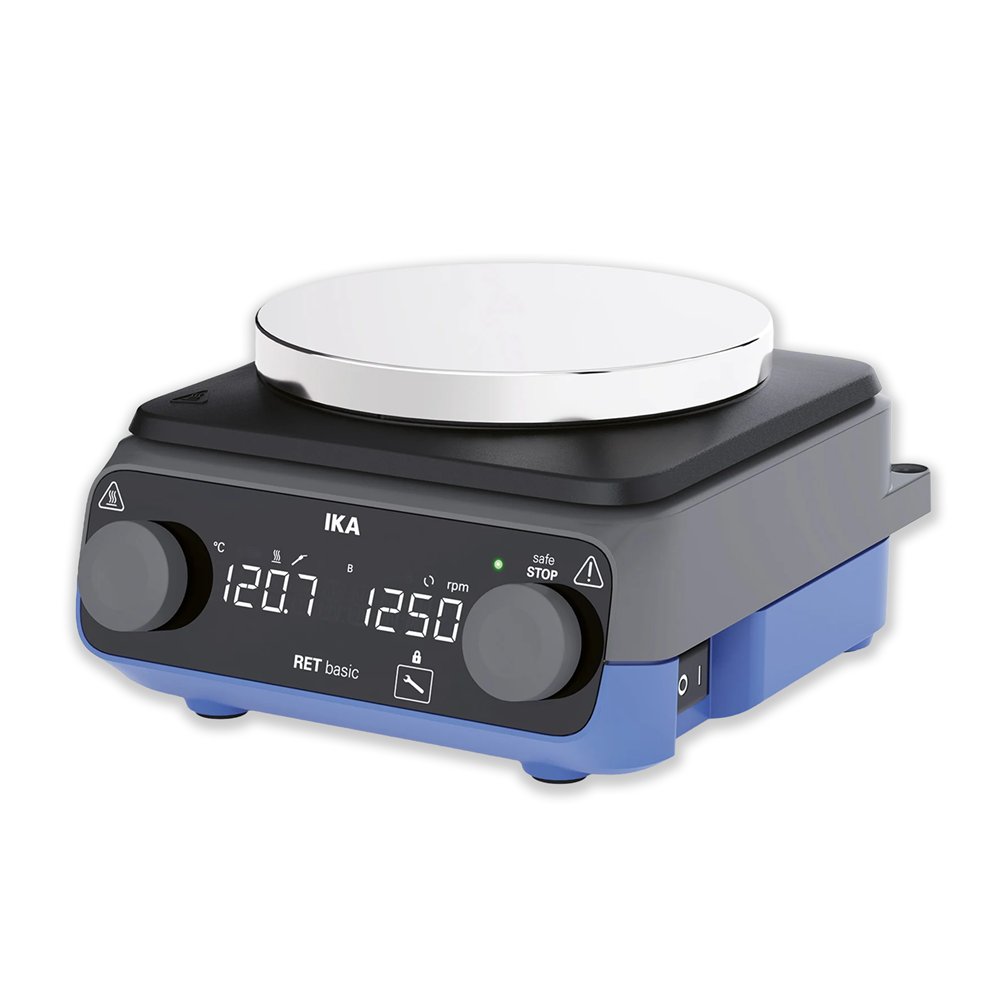

Magnetic stirrer with heating, RET basic (new) ANODISED 800W

Product Code: IKA20133787

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

Compact magnetic stirrer with powerful heating and advanced lab connectivity

The IKA RET basic sets a new benchmark for laboratory safety, efficiency, and digitalization. With 800 W heating power, temperatures up to 340 °C, and integrated WLAN/LAN connectivity, it is designed for modern, networked laboratories.

Key Features

  • 800 W heating power with rapid heating rates up to 9 K/min
  • Compact footprint ideal for fume hoods and space-saving setups
  • Integrated WLAN, LAN, USB, and RS232 interfaces for seamless connectivity
  • Robust IP54-rated die-cast aluminum housing for harsh lab environments
  • Brushless EC motor with stirring speeds up to 1700 rpm
  • Anodized aluminum heating plate for excellent chemical and scratch resistance
  • Programmable timer with optional automatic heating/stirring shutoff
  • Compatible with wireless temperature and pH sensors
  • Advanced safety monitoring with automatic overheating and stirring detection
  • TÜV Süd certified and compliant with EN IEC 61010-2-010 standards
  • Made in Germany with fully automated precision manufacturing

Designed for the Digital Laboratory

The RET basic enables centralized monitoring, software integration, and intelligent device networking, helping laboratories improve process safety, automation, and documentation efficiency.

Reliable Performance, Maximum Safety

Built for continuous operation, the RET basic combines durable construction, intuitive operation, and intelligent safety features to support reliable 24/7 laboratory workflows.

Technical Specifications
Supplier IKA
Technical Data
Number of stirring positions  1
Stirring quantity max. per stirring position (H2O) [l] 20
Maximum load [kg]  25
Motor rating output [W]  9
Motor principle  Brushless DC
Direction of rotation right Right
Speed display set-value  LED
Speed display actual-value  LED
Speed adjustment  Control knob (Rotating/Pressing)
Speed range [rpm] 50 - 1700
Setting accuracy speed [rpm]  10
Stirring bar length [mm]  20 - 80
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) [K]  +15
Heat output [W]  800
Temperature display set-value LED
Temperature display actual-value  LED
Temperature unit °C
Heating temperature range [°C]  Room temp. + device self heating - 340
Heat control  Control knob (Rotating/Pressing)
Display resolution [K] 0.1
Temperature setting range [°C]  0 - 340
Temperature setting resolution of heating plate [K] 1
Connection for ext. temperature sensor  PT1000, ETS-D5, ETS-D7, PT wireless
Temperature setting resolution of medium [K]  0.1
Operating temperature min. (with external cooling) [°C]  -20
Adjustable safety circuit [°C] 50 - 360
Set-up plate material Aluminum with ceramic coating
Set-up plate dimensions [mm]  Ø 135
Automatic reverse rotation  optional (with IKA HUB)
Intermittent mode optional (with IKA HUB)
Viscosity trend measurement optional (with IKA HUB)
Break detection stirring bar  optional (with IKA HUB)
Timer Yes
Timer display  LED
Time setting min. [s]  1
Time setting max. [min]  5999
pH measurement  optional (with ETS-D7, PT wireless)
Programs  optional (with IKA HUB)
Sensor in medium detection  Yes
Temperature measure range PT1000 [°C] -20 - 340
PT 1000 deviation;DIN EN 60751 Kl. A [K]  ≤ ± (0.15 +0.002xITI)
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) [%]  ±2
Heating rate (1l H2O in H1500) [K/min]  9
Heat control accuracy of heating plate centre without vessel (at 100°C) [K] ±5
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K] ±0.5 ±0.5
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K] ±0.5
Heat control accuracy with ETS-D7 (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C) [K] ±0.2
Heat control accuracy with PT wireless (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C) [K] ±0.2
Dimensions (W x H x D) [mm]  160 x 100 x 200
Weight [kg]  2.3
Permissible ambient temperature [°C]  5 - 40
Permissible relative humidity [%] 80
Protection class according to DIN EN 60529 IP 54
RS 232 interface Yes
USB interface USB-C
WPAN interface  Yes
WiFi Interface Yes
Ethernet interface  Yes
Voltage [V]  220 - 230
Frequency [Hz]  50/60
Power input [W]  W] 820
Power input standby [W]  0.45
