Multi function power supply (timer: 0-99 minutes, 7 voltage variations)
Multichannel Pipette Compatability (allows formation of 13 or 26 lanes)
UV Transparent Electrophoresis Tank (allows users to directly observe bends by mounting the tank on the transilluminator)

Specifications:

Electrophoresis Cell
Overall dimensions	183mm (W) x 56mm (H) x 164mm (L)
Material	UV transparent plastic (254nm -> 50%, 312nm -> 80%)
Solution volume	Approx. 270-320ml (buffer solution only)
Multi-sample	Multichannel-pipette compatible

Safety Lid
Overall dimensions	197mm (W) x 38mm (H) x 170mm (L)

Power Supply
Overall dimensions	75mm (W) x 62mm (H) x 170mm (L)
Weight	410g
Input voltage	AC100~240V, AC50/60Hz
Output voltage	135V, 100V, 50V, 25V, 70V, 35V, 18V. Constant peak voltage of 140V and duty control
Timer	Timer operation 0-99 min. and continuous mode. Pause function supported.
Safety switch	Micro-switches in the power supply without safety lid, no output of power.
Memory function	Automatic memory (the last used V & T)

Comb
Multiple number of wells	13 or 26 wells (13 wells: 9mm spacing, 26 wells: 4.5mm spacing)
Quantity	4

Gelmaker Stand
Overall dimensions	149mm (W) x 20mm (H) x 125mm (L)

File Upload:

Please enter the validation code

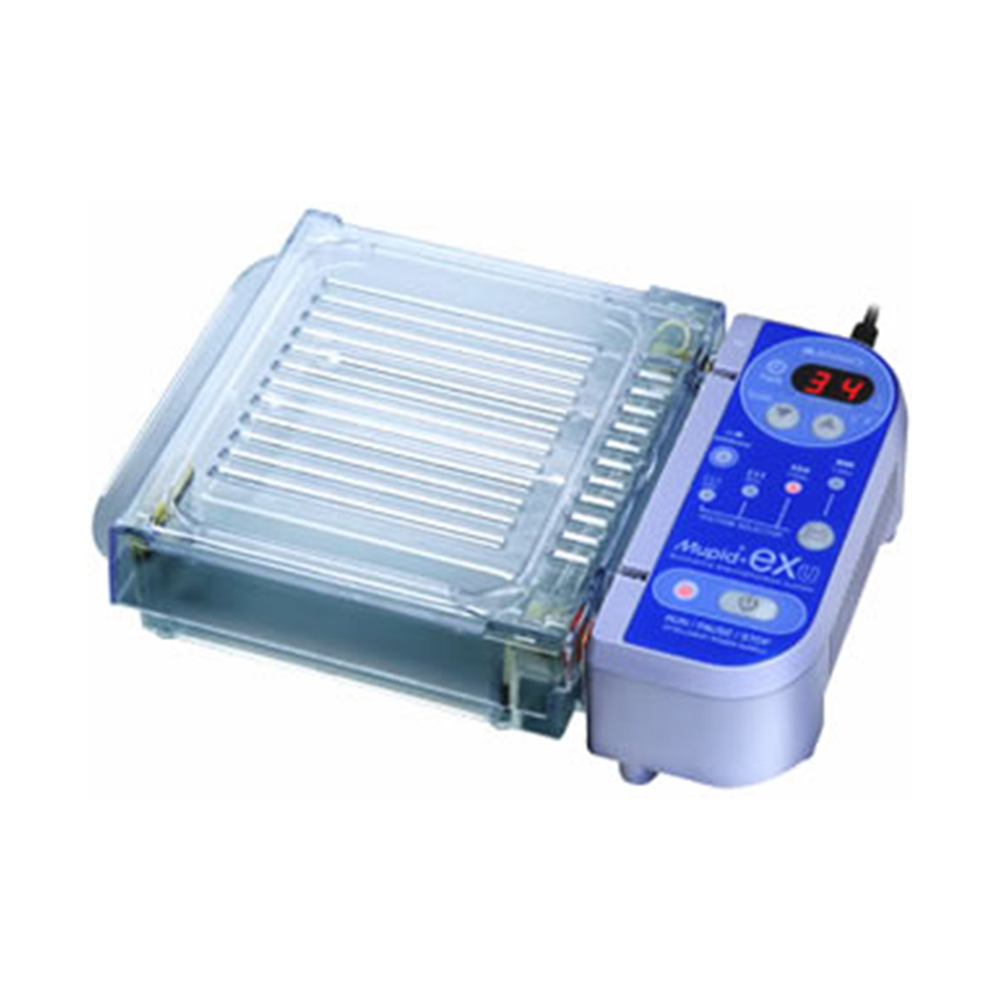

Mupid-eXU

Mupid-exU submarine electrophoresis system
