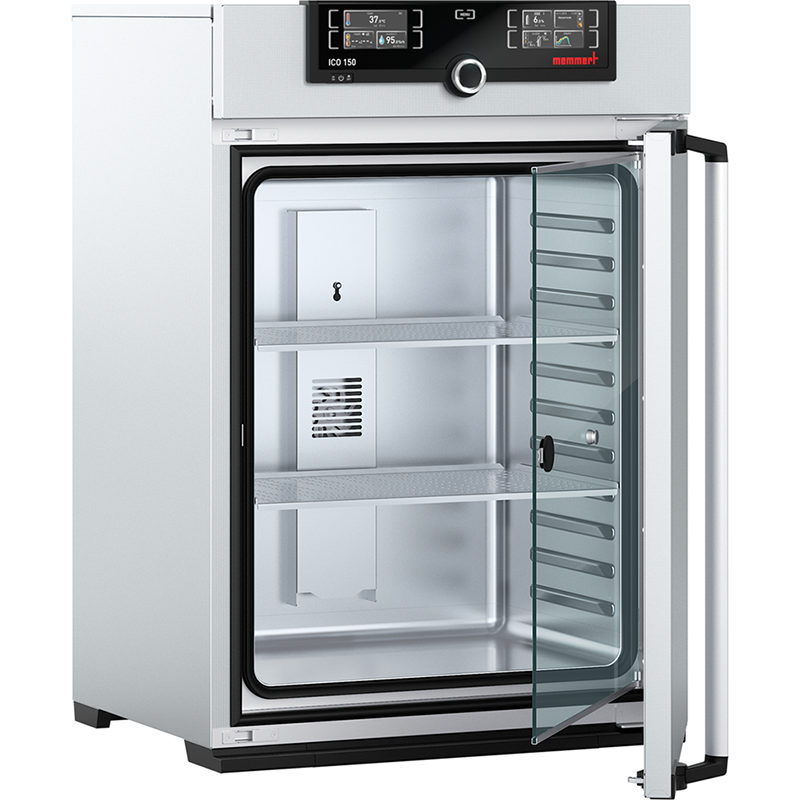

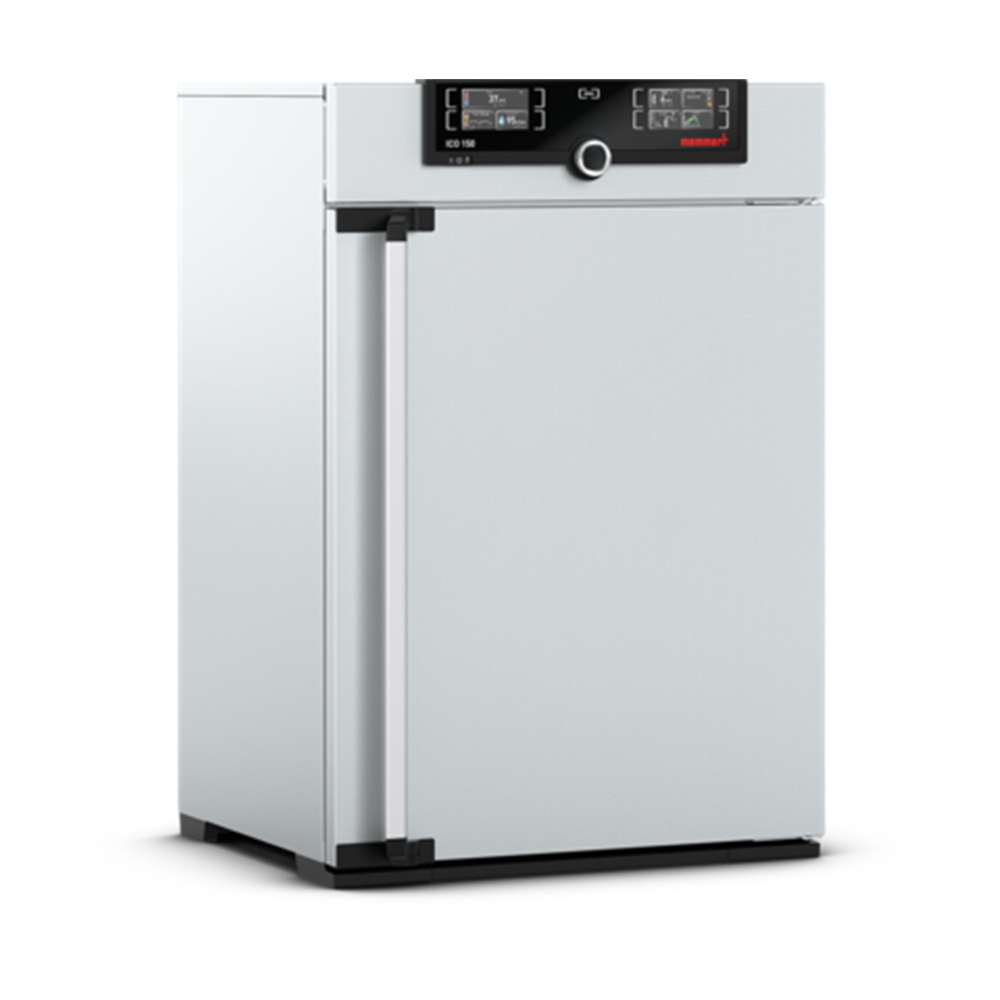

Incubator ICO CO2 150L 5C above ambient up to +50C

Product Code: MMTICO150

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

The control system of the Memmert CO2 incubator ICO is so finely tuned that the appliance reaches the setpoint temperature very quickly and without temperature overshoots. Alarm notifications to your mobile phone guarantee the safety of the chamber load, and the battery-buffered ControlCOCKPIT ensures continuous CO2 control even when there is a power failure. Ideal hygiene is a given too: rounded edges enable easy and thorough cleaning, the interior can be sterilised within 60 minutes at 180 °C.

  • Four model sizes (with a chamber volume of 56 to 241 litres)

  • Temperature range +18 °C to +50 °C

  • Setting range CO2 0 to 20 % CO2

  • Setting range 02 1 to 20 % O2

  • Setting range active humidity control (with option K7) 40 to 97 and rh-off

  • Fail-safe, FDA-compliant logging of temperature, CO2, O2 humidity, open door time data

  • Battery-buffered ControlCOCKPIT: The operating display, logging and CO2 control are fully functional even during a power failure

  • Visual and acoustic alarm as well as alarm notification to mobile phones if the individually adjustable temperature, CO2, O2, or humidity ranges are exceeded

  • Active humidity control

  • The interior chamber, including all installations and sensors, can be sterilised at +180 °C in a 60-minute programme.

Minimising vaporisation and condensation

Active humidity control ensures short recovery times after the door has been opened and minimises vaporisation in the interior. Together with the heating of the interior from all six sides and the heated inner glass door, it offers maximum protection for cell and tissue cultures and avoids the dangerous formation of condensation. The turbulence-free chamber ventilation ensures a constant and uniform atmosphere.

Unrivalled user friendliness

All parameters can be set easily and intuitively both with the operating display and the ControlCOCKPIT or the AtmoCONTROL software. The shutter box can be opened, allowing fast access to controls. Maintenance is possible even if the appliances are stacked. The incubator ICO has USB and Ethernet connections as well as a data logger with a ten-year storage capacity. Data can be read and programmes can be uploaded by remote access. Numerous features of the CO2 incubator ICO leave nothing to be desired:

  • Two gas connections with quick release connectors for automatic switch-over of gas bottles

  • Electropolished, seamlessly welded chamber

  • Electronic control for active humidification and dehumidification (40 to 97 % rh)

  • Control of oxygen concentration by introducing nitrogen, adjustment range from 1 % to 20 % O2


A Memmert CO2 incubator offers unique advantages

  • User-friendly, intuitive operating concept

  • Almost exclusive use of high-quality, corrosion-resistant and easily cleanable stainless steel for the inner chamber and housing

  • Precise and homogenous temperature control thanks to a product-specific heating concept

  • A wide range of options for reading and data logging using interfaces, integrated data loggers and the AtmoCONTROL software

  • Three years guarantee worldwide

Technical Specifications
Supplier Memmert

ICO150

Standard delivery CO2 incubator

On this page, you can find all the essential technical data on the Memmert CO2 incubator ICO. Our customer relations team will be pleased to help if you want further information. If you should require a customised special solution, please contact our technical specialists at info@labsupply.co.nz

Sketch CO<sub>2</sub> incubator ICO150

Temperature

Working-temperature range 5 °C above ambient temperature up to +50 °C
Standard sterilisation programme: 60 minutes at 180°C (without removing the sensors)
Setting temperature range +18 to +50 °C
Setting accuracy temperature 0.1 °C
Temperature sensor 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Temperature variation in chamber at + 37 °C +/- 0.3 K
Temperature fluctuations with time at 37 °C +/- 0.1 K

Humidity

Humidity control (standard) Humidity limitation thanks to a Peltier element; when water dish is full and inserted, the Peltier element limits the value of relative humidity in the interior to 93 % rh +/- 2.5 %
Setting accuracy humidity 0.5 % rh
Setting range active humidity control (with option K7) 40 to 97 % rh and rh-Off

Control of standard components

CO2 control Digital electronic CO2 control with dual beam NDIR system, with auto-diagnostic system and acoustic fault indication, barometric pressure compensation
Adjustment range CO2 0 to 20 % CO2
Setting accuracy CO2 0,1%
Variation in time CO2 +/- 0.2 % CO2
Adjustment range O2 1 to 20 % O2
Setting accuracy O2 0.1 % O2

Control technology

ControlCOCKPIT TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Language setting German, English, Spanish, French, Polish, Czech, Hungarian
Function SetpointWAIT the process time does not start until the set temperature is reached
Adjustable parameters temperature (Celsius or Fahrenheit), CO2, programme time, time zones, summertime/wintertime

Communication

Interface Ethernet LAN, USB
Documentation programme stored in case of power failure
Programming AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Safety

AutoSAFETY additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating function is switched off in case of overtemperature, cooling function in case of undertemperature
Autodiagnostic system integral fault diagnostics for temperature and CO2
Alarm visual and acoustic

Heating concept

6 sides large-area multi-function heating system on four sides with additional door and back heating to avoid condensation

Standard equipment

Works calibation certificate Works calibration certificate at +37 °C, 5 % CO2 and 90 % rh (requires option K7); standard equipment for units with active humidity control
Works calibation certificate Works calibration certificate at +37 °C, 5 % CO2, 90 % rh and 10 % O2 (requires option K7 and option T6); standard equipment for units with O2 control
Works calibation certificate incl. works calibration certificate (measuring point chamber centre) at +37°C, 5 % CO2 for standard units
Door fully insulated stainless steel door with 2-point locking (compression door lock)
Door inner glass door with opening (8 mm Ø) to take gas sample
Standard equipment CO2 connection set: hose with coupling and clamp
Standard accessories Membrane filter (in order to remove impurities and pollutants, all incoming gases pass through a membrane filter before they reach the chamber)
Internals 2 perforated stainless steel shelf/shelves
Internals 1 stainless steel water dish

Stainless steel interior

Dimensions w(A) x h(B) x d(C): 560 x 700 x 400 mm (d less 35 mm for fan)
Interior material 1.4301 (ASTM 304), corrosion resistant
Volume 156 l
Max. number of internals 10
Max. loading of chamber 120 kg
Max. loading per internal 15 kg

Textured stainless steel casing

Dimensions w(D) x h(E) x d(F): 719 x 1070 x 591 mm (d +56mm door handle)
Housing rear zinc-plated steel

Electrical data

Voltage Electrical load 230 V, 50/60 Hz
approx. 1500 W
Voltage Electrical load 115 V, 50/60 Hz
approx. 1500 W

Ambient conditions

Set Up The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.
Ambient temperature 10 °C to 35 °C
Humidity rh max. 70 %, non-condensing
Altitude of installation max. 2,000 m above sea level
Overvoltage category II
Pollution degree 2

Packing/shipping data

Transport information The appliances must be transported upright
Customs tariff number 8419 8998
Country of origin Federal Republic of Germany
WEEE-Reg.-No. DE 66812464
Dimensions approx incl. carton w x h x d: 800 x 1250 x 800 mm
Net weight approx. 90 kg
Gross weight carton approx. 116 kg
