T 65 Accessories

S 65 KD - G 65 G Dispersing tool, for T 65 basic/digital

Product Code: IKA0010000641

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

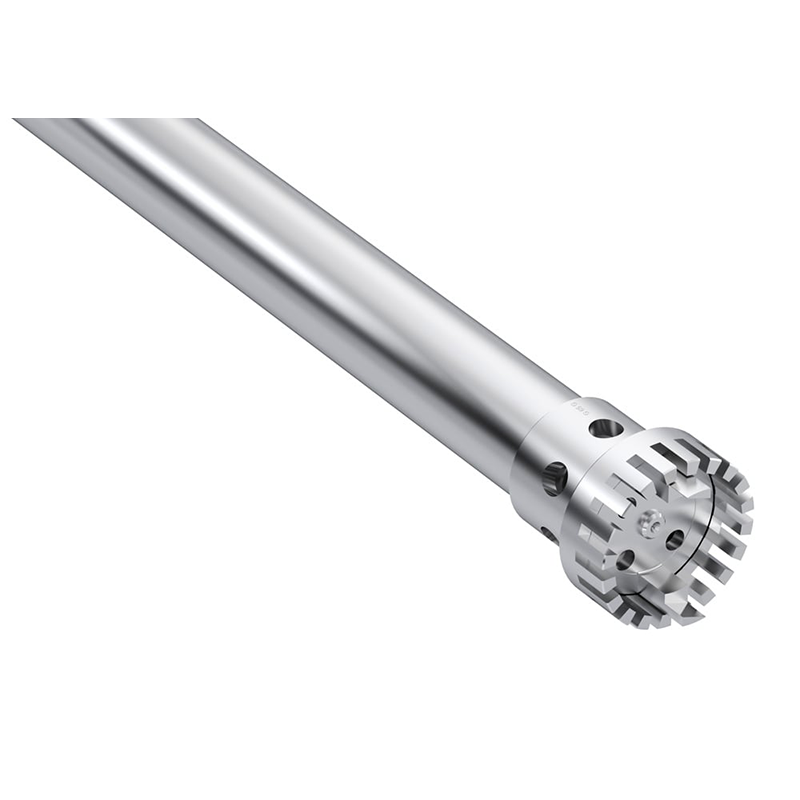

S 65 KD - G 65 G Dispersing tool, for T 65 basic/digital

Dispersing tool for the disperser T 65 basic/digital

Type of sealing and bearing: Ball-bearing with PTFE sealing and FFKM O-ring
Product-touching material: AISI 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. working temperature [°C]: 180
Shaft length [mm]: 520
Diameter stator/rotor [mm]: 65/53
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 90 - 450
Recommend working range [ml]: 2,000 - 50,000

Technical Specifications
Supplier IKA
Volume range (H2O) 2 - 50 l
Stator diameter 65 mm
Rotor diameter 53 mm
Gap between rotor and stator 0.5 mm
allowable Speed max. 9500 rpm
Circumferential speed max. 26.4 m/s
Immersion depth 90 - 450 mm
Shaft length 520 mm
Material in contact with medium FFPM, PTFE, AISI 316L
pH range 2 - 13
Working temperature max. 170 °C
Sterilization methods wet chemical
Vacuum 100 mbar
Ultimate fineness, suspensions 25 - 75 µm
Ultimate fineness, emulsions 5 - 25 µm
Weight 4.39 kg
