T 50 Accessories

S 50 KG - HH - G 45 G Dispersing tool, for T 50 digital

Product Code: IKA0008003200

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

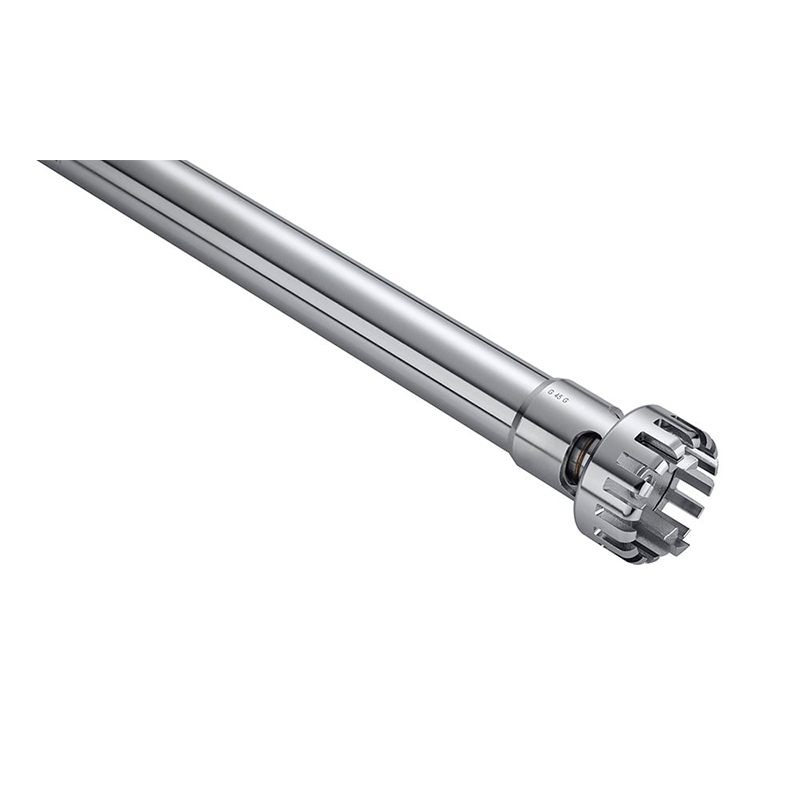

S 50 KG - HH - G 45 G Dispersing tool, for T 50 digital

Suitable for dispersing instrument T 50 digital
Ultimate fineness, emulsions 10 - 30 µm*
Working range: 0,5 - 20 l
Stator diameter: 45 mm
Immersion depth: 70 - 260 mm
Materials in contact with medium: FFPM, SIC, AISI 316L
Suitable for solvents: yes
Max. temperature: 180 °C
Sterilization methods: all methods
Technical Specifications
Supplier IKA
Volume range (H2O) 0.5 - 20 l
Stator diameter 45 mm
Rotor diameter 36 mm
Circumferential speed max. 18.8 m/s
Immersion depth 70 - 260 mm
Shaft length 300 mm
Material in contact with medium FFPM, WC /AISI 316L
pH range 2 - 13
Suitable for solvents yes
Working temperature max. 150 °C
Sterilization methods wet chemical
Vacuum 1 mbar
Pressure max. 6 bar
Ultimate fineness, suspensions 40 - 100 µm
Ultimate fineness, emulsions 10 - 30 µm
Weight 0.552 kg
