T 50 Accessories

S 50 KD - G45G Dispersing tool, for T 50 digital

Product Code: IKA0010000629

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

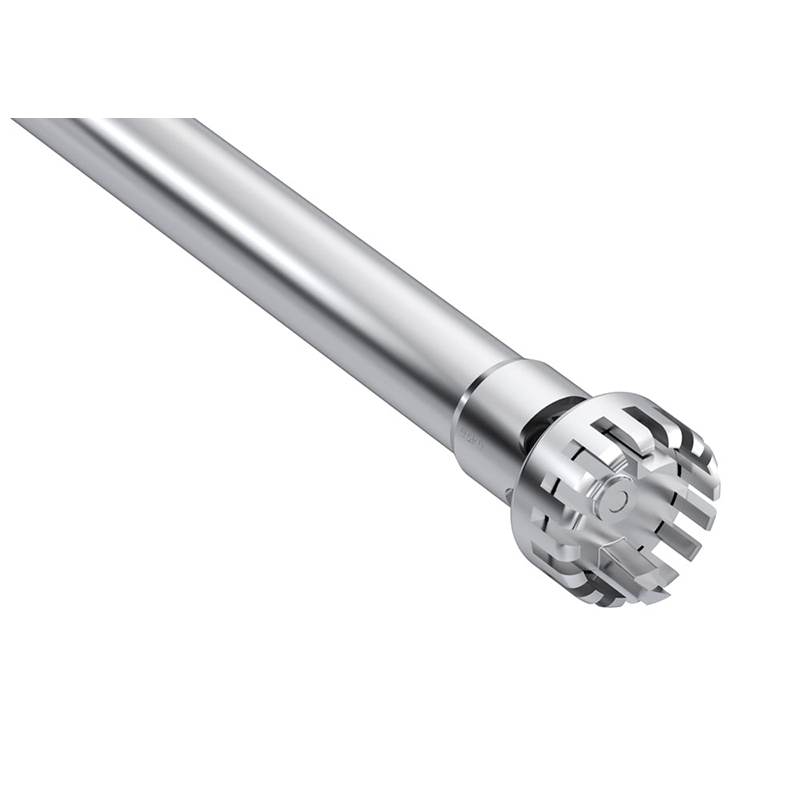

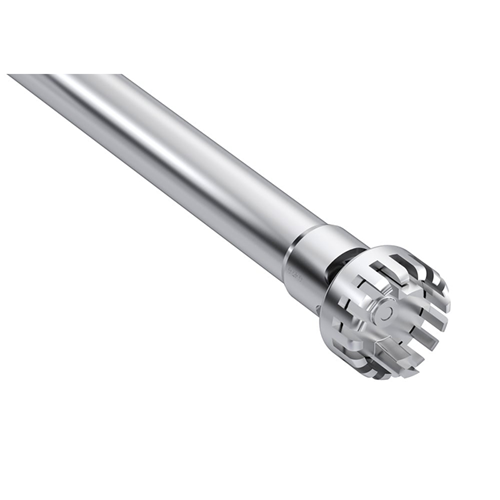

S 50 KD - G45G Dispersing tool, for T 50 digital

Dispersing tool for the disperser T 50 digital

Type of sealing and bearing: Ball-bearing with PTFE sealing and FFKM O-ring
Product-touching material: AISL 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. working temperature [°C]: 150
Shaft length [mm]: 300
Diameter stator/rotor [mm]: 45/36
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 70 - 260
Recommend working range [ml]: 500 - 20,000

Technical Specifications
Supplier IKA
Volume range (H2O) 0.5 - 20 l
Stator diameter 45 mm
Rotor diameter 36 mm
Gap between rotor and stator 0.5 mm
allowable Speed max. 10000 rpm
Circumferential speed max. 18.8 m/s
Immersion depth 70 - 260 mm
Shaft length 300 mm
Material in contact with medium FFPM, PTFE, AISI 316L
pH range 2 - 13
Suitable for solvents yes
Working temperature max. 150 °C
Sterilization methods autoclavable
Vacuum 100 mbar
Ultimate fineness, suspensions 40 - 100 µm
Ultimate fineness, emulsions 10 - 30 µm
Weight 0.9855 kg
