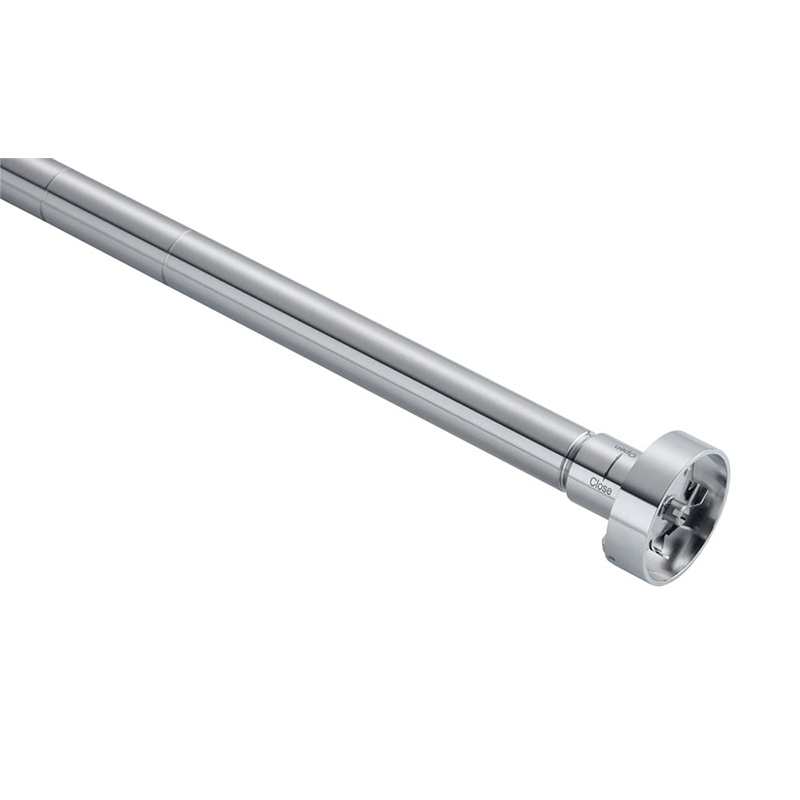

S 25 KV - 2802 Dissolver agitator shaft, high speed

High speed agitator shaft suitable for intensive mixing and for dissipation of agglomerates.
Bearing assembly with ball bearing and mechanical seal (SiC = counter ring and slide ring, o-rings = Kalrez)

  • Material: Stainless steel (AISI 316L)
  • For operation under vacuum
  • Short-term operating temperature: up to 220°C
  • Suitable for vacuum and solvents, can be sterilized
Technical Specifications
Supplier IKA
Volume range (H2O) 0.1 - 2 l
Stator diameter 39 mm
Rotor diameter 30 mm
allowable Speed max. 25000 rpm
Circumferential speed max. 39.3 m/s
Immersion depth 40 - 225 mm
Shaft length 270 mm
Material in contact with medium FFPM, SIC, AISI 316L, AISI 302
pH range 2 - 13
Suitable for solvents yes
Working temperature max. 220 °C
Sterilization methods all methods
Vacuum 1 mbar
Pressure max. 6 bar
FDA conformity yes
Weight 0.56 kg
