S 25 KV - 18 G Dispersing tool, for T 25 digital

Product Code: IKA0002348000

Increase value Decrease value
  • Overview
  • Specifications
  • Contact us
  • Attachments
Overview

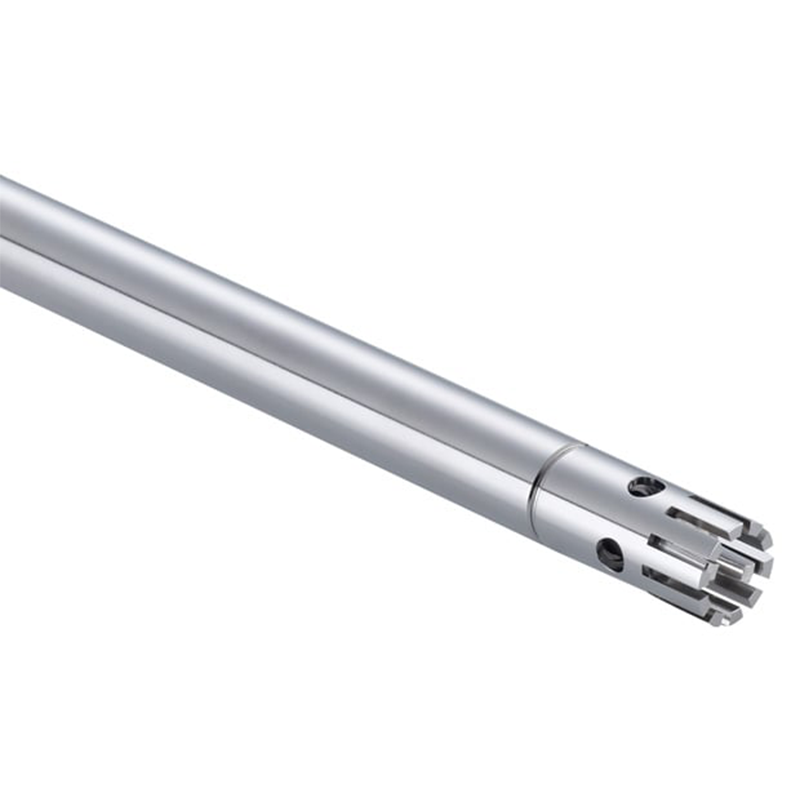

S 25 KV - 18 G Dispersing tool, for T 25 digital

Suitable for dispersing instrument T 25 digital
Working range: 10 - 1.500 ml
Stator diameter: 18 mm
Immersion depth: 40 - 225 mm
Materials in contact with medium: FFPM / SIC, AISI 316L
Suitable for solvents
Max. temperature: 220 °C
Sterilization methods: wet chemical
Technical Specifications
Supplier IKA
Volume range (H2O) 0.01 - 1.5 l
Stator diameter 18 mm
Rotor diameter 12.7 mm
Gap between rotor and stator 0.25 mm
allowable Speed max. 25000 rpm
Circumferential speed max. 16.6 m/s
Immersion depth 40 - 225 mm
Shaft length 270 mm
Material in contact with medium FFPM, SIC, AISI 316L, AISI 302
pH range 2 - 13
Suitable for solvents yes
Working temperature max. 220 °C
Sterilization methods all methods
Vacuum 1 mbar
Pressure max. 6 bar
Ultimate fineness, suspensions 10 - 50 µm
Ultimate fineness, emulsions 1 - 10 µm
FDA conformity yes
Weight 0.5514 kg
