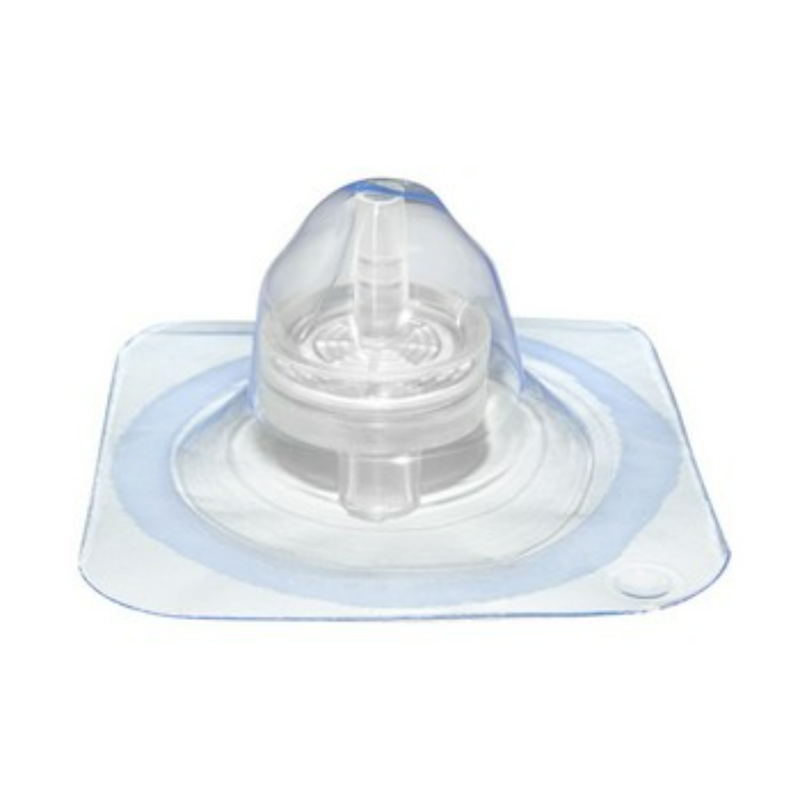

Catalogue: FJ13BSCPV004AL01
Quick and efficient filtration of samples and all kind of solutions, solvents or gases
Housing injected in Acrylic
Sterilie
Available in bulk-packages of 50
Accurate labeling: each filter is labeled with the specific filter material and pore size for easy identification even if the syringe filter is not in its original Packaging
Characteristics
Housing Material: Acrylic Ultrasonically welded
Housing Diameter: 18 mm
Effective Filtration Area: 0.76 cm²
Inlet /outlet: FLL/MLS
Holdup Volume: <50 microliter
Maximum Operating Temperature: 50°C / 122°F
Maximum Operating Pressure: 80 psi
Sterile: Yes
| SPECIFICATIONS |
|
| Product code |
FJ13BSCPV004AL01 |
| Description |
Syringe filter diam.13 mm FLL/MLS Acrylic Transparent membr.PVDF 0.45 µm blst Sterile |
| Membrane diameter (mm) |
13 |
| Weight (g) |
3.32 |
| Membrane material |
PVDF |
| Pore size (µm) |
0.45 |
| Pressure (bar) |
5 |
| Bubble point - typical (psi using water) |
23 |
| Housing diameter (mm) |
18 |
| Color |
Transparent |
| Inlet / outlet |
Female luer lock/Male luer slip |
| Typical water flow rate (ml/min at 15 psi & 23°C) |
50 |
| Effective filtration area (cm2) |
0.76 cm2 |
| Applications |
Filtration of Aqueous Solutions; Filtration of Organic Solutions; Analytical Sample Prep, HPLC; Chromatography; Clarification; Protein Chemistry |
| Box quantity |
50 |
| Notes |
Sterilizing and clarifying filtration of biological solutions; Preparation of protein-containing solutions prior to chromatography or other instrument analyses; Useful for a wide range of applications, including aggressive and non-aggressive solvent-based mobile phase; Offers excellent chemical compatibility, even with aggressive acids and alcohols. Provides high flow rates and throughput, low extractables and broad chemical compatibility; Sample prep for HPLC |
