Features and Benefits
GVS PCTE Membrane offers many features and benefits.
- Absolute pore size and density:Provides flow control for liquids moving through the membrane capturing 100 percent of cells larger than pore size
- Smooth, thin, glass-like surface:Planar surface makes it ideal for particle identification by microscopy
- Superior strength:Tensile strength of 207 bar (> 3000 psi) maintains pore size and density, and will not stretch
- Low extractables:Ensures tests will be clean promoting consistent results
- Low protein binding
- Negligible absorption/adsorption:Maximizes critical solution recovery
Typical Applications
- General filtration
- Removal of red blood cells from plasma
- Flow control of reagents through assay
- Precise filtration and prefiltration
Product Characteristics
|
Sterilization
|
Gamma Irradiation or Ethylene Oxide (EtO)
|
|
USP Class VI Testing
|
Passed
|
|
Extractables
|
Very Low
|
|
BSA Protein Binding
|
5 μg/cm2
|
|
Maximum Operating Temperature
|
284°F (140°C)
|
|
Sealing Compatibility
|
Ultrasonic, Heat, Radio Frequency and Insert Molding
|
|
Pore Size Range
|
0.1 to 20 μm
|
| Product code |
1212661 |
| Description |

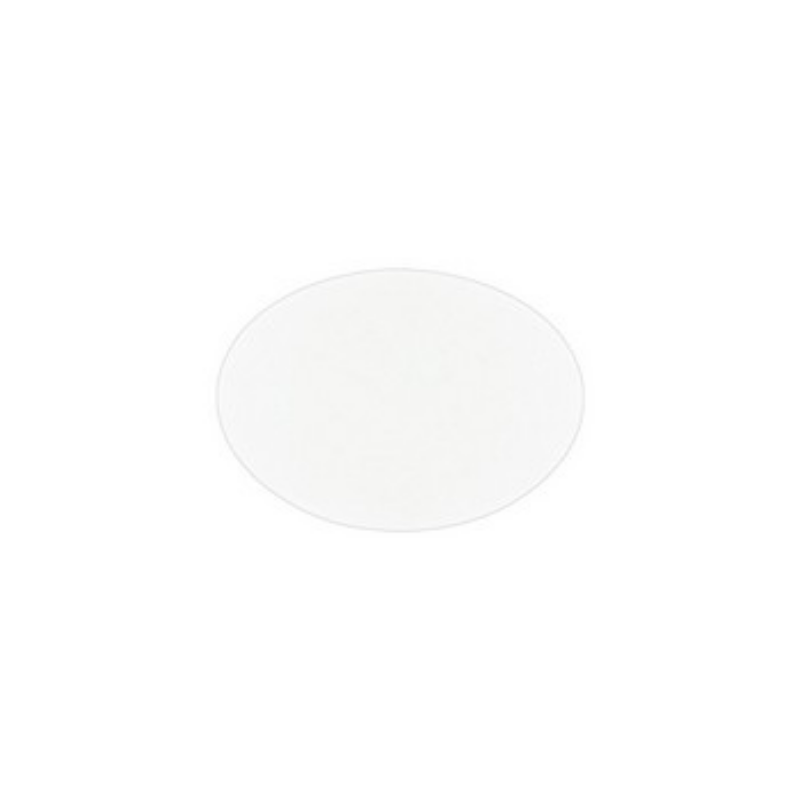

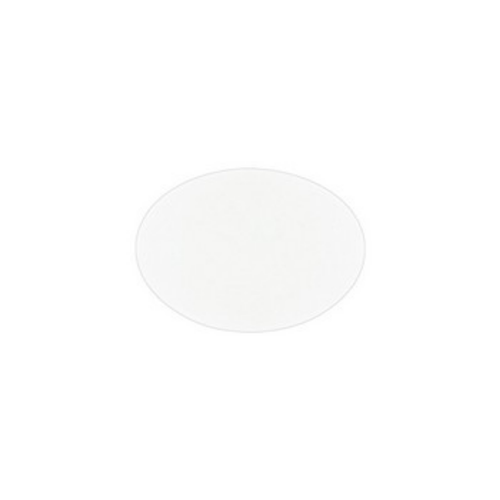

Polycarbonate Track Etched (PCTE) Membrane disk diam. 47 mm, PCTE 10 µm |
| Pore size (µm) |
10 |
| Hydrophobic |
No |
| Kind |
disk |
| Pad |
NA |
| Applications |
General Filtration; Removal of red blood cells from plasma; Flow control of reagents through assay; Precise filtration and prefiltration |
| Box quantity |
100 |
